18F-FDG和68Ga-FAPI PET/CT在不同恶性肿瘤肺转移诊断中的对比研究

doi:10.19401/j.cnki.1007-3639.2023.09.003

中国癌症杂志 ›› 2023, Vol. 33 ›› Issue (9): 829-833.doi: 10.19401/j.cnki.1007-3639.2023.09.003

¹⁸F-FDG和⁶⁸Ga-FAPI PET/CT在不同恶性肿瘤肺转移诊断中的对比研究

杨梓怡¹^,²^,³^,⁴^,⁵(), 顾丙新¹^,²^,³^,⁴^,⁵, 许晓平¹^,²^,³^,⁴^,⁵, 宋少莉¹^,²^,³^,⁴^,⁵()

1.复旦大学附属肿瘤医院核医学科，复旦大学上海医学院肿瘤学系，上海 200032
2.复旦大学生物医学影像研究中心，上海 200032
3.上海分子影像探针工程技术研究中心，上海 200032
4.上海市质子重离子医院核医学科，上海 201315
5.复旦大学核物理与离子束应用教育部重点实验室，上海 200433

收稿日期:2023-05-30 修回日期:2023-09-05 出版日期:2023-09-30 发布日期:2023-09-30
通信作者: 宋少莉（ORCID: 0000-0003-2544-7522），主任医师。
作者简介:杨梓怡（ORCID: 0000-0002-8947-2623），住院医师。
基金资助:
上海市抗癌协会“翱翔”计划(HYXH2021004);浦东新区科技发展基金(PKL2020-Y55)

Comparison of ¹⁸F-FDG and ⁶⁸Ga-FAPI PET/CT in the diagnosis of lung metastasis in different malignant tumors

YANG Ziyi¹^,²^,³^,⁴^,⁵(), GU Bingxin¹^,²^,³^,⁴^,⁵, XU Xiaoping¹^,²^,³^,⁴^,⁵, SONG Shaoli¹^,²^,³^,⁴^,⁵()

1. Department of Nuclear Medicine, Fudan University Shanghai Cancer Center, Department of Oncology, Shanghai Medical College, Fudan University, Shanghai 200032, China
2. Center for Biomedical Imaging, Fudan University, Shanghai 200032, China
3. Shanghai Engineering Research Center of Molecular Imaging Probes, Shanghai 200032, China
4. Department of Nuclear Medicine, Shanghai Proton and Heavy Ion Center, Shanghai 201315, China
5. Key Laboratory of Nuclear Physics and Ion-beam Application (MOE), Fudan University, Shanghai 200433, China

Received:2023-05-30 Revised:2023-09-05 Published:2023-09-30 Online:2023-09-30
Contact: SONG Shaoli.

摘要/Abstract

摘要：

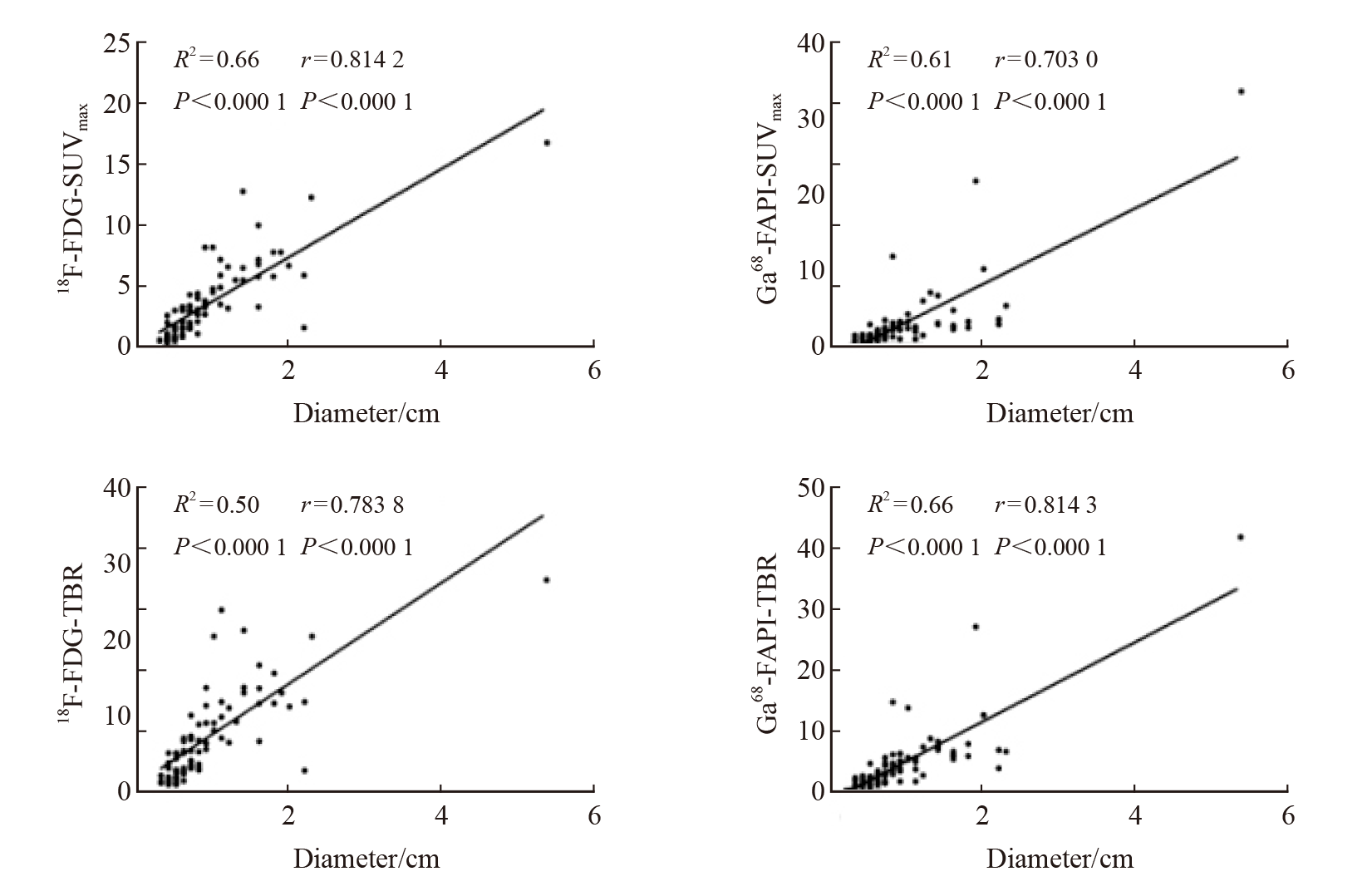

背景与目的：¹⁸F-氟代脱氧葡萄糖（¹⁸F-flurodeoxyglucose，¹⁸F-FDG）正电子发射计算机体层成像（positron emission tomography and computed tomography，PET/CT）是诊断恶性肿瘤伴远处转移的常用方法，但对肺部转移灶尤其是小病灶的检测仍不理想。⁶⁸Ga-成纤维细胞激活蛋白抑制剂（⁶⁸Ga-labeled fibroblast activation protein inhibitors，⁶⁸Ga-FAPI）已被用于靶向成纤维细胞激活蛋白和肿瘤基质的可视化。⁶⁸Ga-FAPI PET/CT对大多数癌症的原发灶及其转移灶的诊断价值均高于¹⁸F-FDG，但至今尚未见到对恶性肿瘤肺部转移性病变的对比研究。因此，本研究旨在探讨¹⁸F-FDG和⁶⁸Ga-FAPI PET/CT对不同恶性肿瘤肺转移病变的诊断价值。方法：回顾性分析复旦大学附属肿瘤医院2020年5月—2022年3月于1周内行¹⁸F-FDG和⁶⁸Ga-FAPI PET/CT检查的20例恶性肿瘤肺转移患者的临床、病理学及影像学资料，其中上皮源性恶性肿瘤（癌）11例，间叶源性恶性肿瘤（肉瘤）9例。采用配对t检验比较⁶⁸Ga-FAPI和¹⁸F-FDG的病灶最大标准摄取值（maximum standard uptake value，SUV_max)和肿瘤与本底比值（target-to-background ratio，TBR）参数之间的差异；采用线性相关性分析SUV_max和TBR与肺转移灶短径之间的相关性。结果：20例患者共81个肺转移灶（51个来自癌转移，30个来自肉瘤转移），¹⁸F-FDG检出阳性病灶72个，⁶⁸Ga-FAPI检查阳性病灶70个。与⁶⁸Ga-FAPI相比，肺转移灶¹⁸F-FDG摄取值更高，尤其是癌来源的肺转移病灶（P <0.001）。线性相关性分析结果显示，两种显像探针的半定量代谢参数值与肺转移病灶短径之间呈正相关（P <0.001）。结论：⁶⁸Ga-FAPI在检测恶性肿瘤肺转移病变时并无明显优势，尤其是在上皮组织来源的恶性肿瘤肺转移诊断中，¹⁸F-FDG摄取值往往更高。

关键词: 恶性肿瘤, 肺转移, 正电子发射计算机体层成像, ¹⁸F-氟代脱氧葡萄糖, ⁶⁸Ga-成纤维细胞激活蛋白抑制剂

Abstract:

Background and purpose: ¹⁸F-flurodeoxyglucose (¹⁸F-FDG) positron emission tomography and computed tomography (PET/CT) is a common method for the diagnosis of malignant tumors with distant metastases. However the detection of lung metastases, especially small lesions, is still unsatisfactory. ⁶⁸Ga-labeled fibroblast activation protein inhibitors (⁶⁸Ga-FAPI) have been used to target fibroblast activating proteins and visualize tumor stroma. The diagnostic value of ⁶⁸Ga-FAPI PET/CT is higher than that of ¹⁸F-FDG in the primary sites and metastases of most cancers, but no comparative study has been seen in lung metastases of malignant tumors. Therefore, this study aimed to investigate the diagnostic value of ¹⁸F-FDG and ⁶⁸Ga-FAPI PET/CT in different malignant lung metastases. Methods: The clinical, pathological and imaging data of 20 patients with lung metastasis who underwent ¹⁸F-FDG and ⁶⁸Ga-FAPI PET/CT examination within one week in Fudan University Shanghai Cancer Center from May 2020 to March 2022 were retrospectively analyzed. Among them, 11 cases were epithelial malignant tumors (carcinoma), and 9 cases were mesophyll malignant tumors (sarcoma). The semi-quantitative metabolic parameters including maximum standard uptake value (SUV_max) and target-to-background ratio (TBR) of ⁶⁸Ga-FAPI and ¹⁸F-FDG were compared by paired t test. The linear correlation between SUV_max and TBR and the short diameter of lung metastasis were analyzed. Results: A total of 81 lung metastases (51 carcinomas and 30 sarcomas) were detected in 20 patients, 72 positive lesions were detected by ¹⁸F-FDG and 70 positive lesions by ⁶⁸Ga-FAPI. Compared with ⁶⁸Ga-FAPI, ¹⁸F-FDG uptake was higher in lung metastases, especially those of carcinoma (P<0.001). The results of linear correlation analysis showed that the semi-quantitative metabolic parameters of the two imaging probes were positively correlated with the short diameter of lung metastases (P<0.001). Conclusion: ⁶⁸Ga-FAPI has no obvious advantage in the detection of lung metastases from malignant tumors. Especially in the diagnosis of lung metastases from epithelial tissues, the uptake of ¹⁸F-FDG tends to be higher.

Key words: Malignant tumor, Pulmonary metastasis, Positron emission tomography and computed tomography, ¹⁸F-flurodeoxyglucose, ⁶⁸Ga-labeled fibroblast activation protein inhibitors

中图分类号:

R730.44

杨梓怡, 顾丙新, 许晓平, 宋少莉. ¹⁸F-FDG和⁶⁸Ga-FAPI PET/CT在不同恶性肿瘤肺转移诊断中的对比研究[J]. 中国癌症杂志, 2023, 33(9): 829-833.

YANG Ziyi, GU Bingxin, XU Xiaoping, SONG Shaoli. Comparison of ¹⁸F-FDG and ⁶⁸Ga-FAPI PET/CT in the diagnosis of lung metastasis in different malignant tumors[J]. China Oncology, 2023, 33(9): 829-833.

图/表 3

参考文献 15

[1]	张建波, 宋魏, 王媛媛, 等. 肺转移性肿瘤113例临床病理学观察[J]. 心肺血管病杂志, 2017, 36(12): 979-982, 987.
	ZHANG J, SONG W, WANG Y, et al. Clicical and pathological analysis of 113 cases of lung metastatic tumors[J]. J Cardiovasc Pulm Dis, 2017, 36(12): 979-982, 987.
[2]	ROHREN E M, TURKINGTON T G, COLEMAN R E. Clinical applications of PET in oncology[J]. Radiology, 2004, 231(2): 305-332. doi: 10.1148/radiol.2312021185 pmid: 15044750
[3]	IAGARU A, CHAWLA S, MENENDEZ L, et al. ¹⁸F-FDG PET and PET/CT for detection of pulmonary metastases from musculoskeletal sarcomas[J]. Nucl Med Commun, 2006, 27(10): 795-802. doi: 10.1097/01.mnm.0000237986.31597.86 pmid: 16969262
[4]	魏昊, 兰晓莉, 廖姗珊, 等. ¹⁸F-FDG PET/CT显像评价胃癌肺转移[J]. 华中科技大学学报(医学版), 2016, 45(2): 141-144.
	WEI H, LAN X, LIAO S, et al. Evaluation of lung metastasis in gastric cancer with ¹⁸F-FDG PET/CT imaging[J]. Acta Med Univ Sci Technol Huazhong, 2016, 45(02): 141-144.
[5]	HATHI D K, JONES E F. ⁶⁸Ga FAPI PET/CT: tracer uptake in 28 different kinds of cancer[J]. Radiol Imaging Cancer, 2019, 1(1): e194003. doi: 10.1148/rycan.2019194003
[6]	LINDNER T, LOKTEV A, ALTMANN A, et al. Development of quinoline-based theranostic ligands for the targeting of fibroblast activation protein[J]. J Nucl Med, 20¹⁸, 59(9): 1415-1422.
[7]	CHEN H, ZHAO L, RUAN D, et al. Usefulness of[⁶⁸Ga]Ga-DOTA-FAPI-04 PET/CT in patients presenting with inconclusive [¹⁸F] FDG PET/CT findings[J]. Eur J Nucl Med Mol Imaging, 2021, 48(1): 73-86. doi: 10.1007/s00259-020-04940-6
[8]	KOERBER S A, STAUDINGER F, KRATOCHWIL C, et al. The role of ⁶⁸Ga-FAPI PET/CT for patients with malignancies of the lower gastrointestinal tract: first clinical experience[J]. J Nucl Med, 2020, 61(9): 1331-1336. doi: 10.2967/jnumed.119.237016
[9]	CHEN H J, PANG Y Z, WU J X, et al. Comparison of [⁶⁸Ga] Ga-DOTA-FAPI-04 and [¹⁸F] FDG PET/CT for the diagnosis of primary and metastatic lesions in patients with various types of cancer[J]. Eur J Nucl Med Mol Imaging, 2020, 47(8): 1820-1832. doi: 10.1007/s00259-020-04769-z
[10]	PANG Y Z, ZHAO L, LUO Z M, et al. Comparison of ⁶⁸Ga-FAPI and ¹⁸F-FDG uptake in gastric, duodenal, and colorectal cancers[J]. Radiology, 2021, 298(2): 393-402. doi: 10.1148/radiol.2020203275
[11]	DING F, HUANG C, LIANG C, et al. ⁶⁸Ga-FAPI-04 vs ¹⁸F-FDG in a longitudinal preclinical PET imaging of metastatic breast cancer[J]. Eur J Nucl Med Mol Imaging, 2021, 49(1): 290-300. doi: 10.1007/s00259-021-05442-9
[12]	GIESEL F L, KRATOCHWIL C, LINDNER T, et al. ⁶⁸Ga-FAPI PET/CT: biodistribution and preliminary dosimetry estimate of 2 DOTA-containing FAP-targeting agents in patients with various cancers[J]. J Nucl Med, 2019, 60(3): 386-392. doi: 10.2967/jnumed.118.215913
[13]	谢昭娟, 全志永, 赵小虎, 等. 胰腺癌摄取 ⁶⁸Ga-FAPI-04的PDX动物模型及临床PET/CT显像研究[J]. 中华核医学与分子影像杂志, 2021, 41(12): 722-726.
	XIE Z, QUAN Y, ZHAO X, et al. Uptake of ⁶⁸Ga-FAPI-04 in pancreatic cancer-PDX animal model and its clinical PET/CT imaging[J]. Chin J Nucl Med Mol Imaging, 2021, 41(12): 722-726.
[14]	CHEN R H, ZHOU X, LIU J J, et al. Relationship between ¹⁸F-FDG PET/CT findings and HER2 expression in gastric cancer[J]. J Nucl Med, 2016, 57(7): 1040-1044. doi: 10.2967/jnumed.115.171165
[15]	YANG Z, LIU S, SUN Y, et al. ¹⁸F-FDG PET/CT metabolic parameters and HER2 expression in colorectal cancer[J]. Neoplasma, 2021, 68(4): 875-881. doi: 10.4149/neo_2021_200803N807

Tumor	Lung metastases		¹⁸F-FDG			⁶⁸Ga-FAPI			P¹value	P²value
Tumor	Amount n	Diameter/cm	Positive lesions n	SUV_max	TBR	Positive lesions n	SUV_max	TBR	P¹value	P²value
Carcinomas	51	0.82±0.06 (0.30-2.20)	48	3.03±0.30 (0.40-8.20)	6.46±0.85 (0.80-36.00)	45	1.69±0.13 (0.40-4.10)	3.58±0.34 (0.67-13.67)	<0.001	<0.001
Sarcomas	30	1.09±0.18 (0.30-5.40)	24	4.22±0.80 (0.40-16.80)	8.16±1.41 (0.83-27.17)	25	4.44±1.29 (0.50-33.40)	6.09±1.58 (0.83-41.75)	0.817	0.144
Total	81	0.92±0.08 (0.30-5.40)	72	3.47±0.35 (0.40-16.80)	7.09±0.75 (0.80-36.00)	70	2.71±0.50 (0.40-33.40)	4.51±0.63 (0.67-41.75)	<0.046	<0.001
