免疫检查点抑制剂疗效相关预测模型的研究进展

doi:10.19401/j.cnki.1007-3639.2023.01.007

摘要/Abstract

摘要：

免疫检查点抑制剂（immune checkpoint inhibitor，ICI）的应用让肿瘤治疗取得了新突破，但不同患者接受免疫治疗后疗效差异较大，仅部分患者能够从中获益。通过检测一些生物标志物可以预测ICI的疗效，如程序性死亡[蛋白]配体-1（programmed death ligand-1，PD-L1）及肿瘤突变负荷（tumor mutation burden，TMB）等。除此之外，目前已有多项研究基于肿瘤患者的基因组学、转录组学或影像组学等数据，筛选多个生物标志物并建立免疫治疗效果相关预测模型。这类模型具备严谨的建立及验证流程，能够纳入更多肿瘤免疫相关变量，有助于提高对ICI疗效的预测能力。本文就肿瘤免疫治疗效果相关预测模型进行综述，以期为免疫治疗获益人群的筛选提供新思路。

关键词: 免疫治疗, 疗效, 预后, 预测模型

Abstract:

The use of immune checkpoint inhibitor (ICI) has revolutionized the treatment among patients with various types of tumors. However, only some patients can benefit from ICI. The identification of predictive markers of response to treatment in patients is required, such as programmed death ligand-1 (PD-L1) and tumor mutation burden (TMB). Besides, there have been numerous studies using sequence and radiomics data based on large populations to explore the factors related to the efficacy, and to establish the prediction model. This kind of model has a rigorous establishment and validation process, can include more tumor immune related variables, and is helpful to improve the prediction ability of the efficacy of ICI. This paper reviewed the establishment of immunotherapy prediction models and provided new thoughts pertaining to screening the potential beneficiaries from immunotherapy.

Key words: Immunotherapy, Efficacy, Prognosis, Prediction model

中图分类号:

R730.51

陈瑛瑶, 储香玲, 俞昕, 苏春霞. 免疫检查点抑制剂疗效相关预测模型的研究进展[J]. 中国癌症杂志, 2023, 33(1): 61-70.

CHEN Yingyao, CHU Xiangling, YU Xin, SU Chunxia. Advances in models predicting efficacy of immune checkpoint inhibitors[J]. China Oncology, 2023, 33(1): 61-70.

图/表 2

表1

ICI疗效相关预测模型汇总"

Author	Model type	Sample size	Data source	Research description	Validate
Bai, et al^[19]	Statistical model	NSCLC (n=316)	Tumor tissue	Developed a gene mutation marker model to predict the response of NSCLC patients to PD-1 inhibitor therapy	Internal+external
Chowell, et al^[20]	Statistical model	NSCLC (n=538), melanoma (n=186), other (n=755)	Tumor tissue peripheral blood	Built a prognostic model based on genomics, clinical and demographic characteristics to predict the survival of patients receiving immunotherapy	Internal
Gu, et al^[21]	Statistical model	HCC (n=365)	TCGA	Established a five-gene-based prognostic model based on the tumour immune microenvironment that can predict immunotherapy efficacy in HCC patients	Internal+external
Dai, et al^[22]	Statistical model	HCC (n=365)	TCGA	Constructed an immune related gene based prognostic index, which can better predict the efficacy of immunotherapy for HCC patients	External
Yi, et al^[23]	Statistical model	LUAD (n=497)	TCGA	Established a prognostic risk score model based on 17 immune related genes. Patients with low scores had a good prognosis after immunotherapy	Internal+external
Hong, et al^[24]	Statistical model	Urothelial carcinoma(n=348)	EGA (EGAS#0000 1002556)	Built a risk stratification system based on 4 genes to predict the therapeutic response of ICIS in metastatic urothelial carcinoma	External
Sun, et al^[25]	Statistical model	Kidney renal clear cell carcinoma (n=539)	TCGA	Established a prognostic risk scoring model based on six genes related to pyroptosis	Internal+external
Zhang, et al^[26]	Statistical model	LUAD (n=1549)	TCGA	Conducted a comprehensive costimulatory molecule landscape analysis of patients with LUAD and built a model for prognosis and immunotherapy response prediction	Internal+external
Xiang, et al^[27]	Statistical model	GC (n=6)	GEO (GSE112302)	Generate a prognostic risk score signature based on GC differentiation-related genes to predict overall survival	External
Leader, et al^[28]	Statistical model	NSCLC (n=27)	Tumor tissue	Identified a cellular module called lung cancer activation model which is correlated with NSCLC response to immunotherapy	External
Lu, et al^[29]	Statistical model	UCEC (n=488)	TCGA	Established a miRNA based diagnostic model and a prognostic model that can predict the prognosis and therapeutic responseof UCEC patients	Internal
Gao, et al^[30]	Statistical model	GC (n=397)	TCGA	Built a prognostic model based on nine autophagy related lncRNA pairs for GC which can predict the efficacy of immunotherapy and chemotherapy	Internal
Nabet, et al^[31]	Statistical model	NSCLC (n=99)	Peripheral blood	Built two predictive models through circulating tumor DNA and peripheral CD8 T cell levels	Internal+external
Wei, et al^[32]	Statistical model	NSCLC (n=30), RCC (n=22), other (n=68)	Peripheral blood	Built a model based on dynamic peripheral blood immune cell markers monitoring	Internal
Newell, et al^[33]	Statistical model	Melanoma (n=77)	Tumor tissue	Built a multivariable model combining the TMB and IFNg-related gene expression and robustly predicts response to immunotherapy	Internal+external
He, et al^[34]	Statistical model	NSCLC (n=327)	CT	Developed an individual non-invasive biomarker that could distinguish high-TMB from low-TMB	Internal
Mu, et al^[35]	Statistical model	NSCLC (n=697)	18F-FDG PET/CT	Identified an effective and stable deeply learned score to measure PD-L1 expression status non-invasively	Internal+external
Trebesch, et al^[36]	Statistical model	NSCLC (n=123), melanoma (n=80)	Contrast-enhanced CT	Provide a predictive machine learning model that could be used within the context of lesion response to treatment, patient treatment response, and response pattern characterization	Internal+external
Liu, et al^[37]	Statistical model	NSCLC (n=46)	CT	Built a novel CT-based radiomics model that has the ability to predict the progression probability for patients with advanced NSCLC receiving nivolumab therapy	Internal
Vaidya, et al^[38]	Statistical model	NSCLC (n=109)	CT	Developed a radiomic model using the integration of intratumoral and novel peritumoral texture and vessel tortuosity metrics	Internal+external
Yang, et al^[39]	Statistical model	NSCLC (n=200)	CT	Offer a model which use multidimensional serial information with inputs from pretreatment clinical data, laboratory tests, and radiomics combined with deep learning	Internal
Yang, et al^[40]	Statistical model	NSCLC (n=149)	CT	Established a radiomics model by combining CT image features and clinicopathological factors to predict the prognosis of immunotherapy	Internal
Dercle, et al^[41]	Statistical model	Melanoma (n=575)	CT	Offer a prognostic model based on CT images at baseline and on first follow-up	Internal
Nardone, et al^[42]	Statistical model	NSCLC (n=59)	CT	Built a model based on texture analysis to select NSCLC patients who may benefit by Nivolumab treatment	External
Hinata, et al^[43]	Statistical model	GC (n=408)	Tumor tissue	Constructed a deep learning model based on tumor histopathological images to effectively stratify GC patients receiving immunotherapy	Internal+external
Butner, et al^[44]	Mathe matical model			Present a mechanistic mathematical model of ICIs therapy to address the oncological need for early, broadly applicable readouts of patient response to immunotherapy

表1

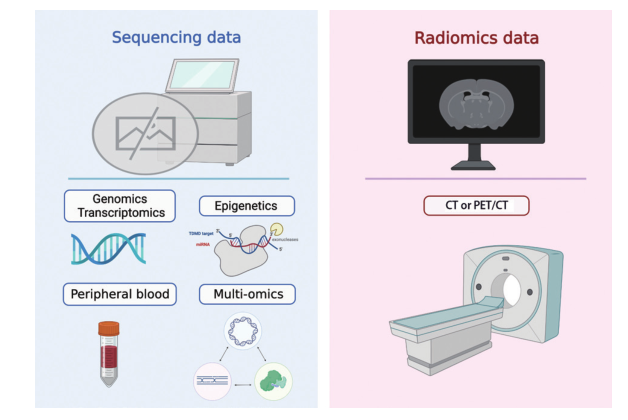

图1

参考文献 59

[1]	RIBAS A, WOLCHOK J D. Cancer immunotherapy using checkpoint blockade[J]. Science, 2018, 359(6382): 1350-1355. doi: 10.1126/science.aar4060 pmid: 29567705
[2]	VADDEPALLY R K, KHAREL P, PANDEY R, et al. Review of indications of FDA-approved immune checkpoint inhibitors per NCCN guidelines with the level of evidence[J]. Cancers (Basel), 2020, 12(3): 738. doi: 10.3390/cancers12030738
[3]	ZHANG Y Y, ZHANG Z M. The history and advances in cancer immunotherapy: understanding the characteristics of tumor-infiltrating immune cells and their therapeutic implications[J]. Cell Mol Immunol, 2020, 17(8): 807-821. doi: 10.1038/s41423-020-0488-6 pmid: 32612154
[4]	ZHU S M, ZHANG T, ZHENG L, et al. Combination strategies to maximize the benefits of cancer immunotherapy[J]. J Hematol Oncol, 2021, 14(1): 156. doi: 10.1186/s13045-021-01164-5
[5]	GALLUZZI L, HUMEAU J, BUQUÉ A, et al. Immunostimulation with chemotherapy in the era of immune checkpoint inhibitors[J]. Nat Rev Clin Oncol, 2020, 17(12): 725-741. doi: 10.1038/s41571-020-0413-z
[6]	ROBERT C, RIBAS A, SCHACHTER J, et al. Pembrolizumab versus ipilimumab in advanced melanoma (KEYNOTE-006): post-hoc 5-year results from an open-label, multicentre, randomised, controlled, phase 3 study[J]. Lancet Oncol, 2019, 20(9): 1239-1251. doi: S1470-2045(19)30388-2 pmid: 31345627
[7]	O’DONNELL J S, TENG M W L, SMYTH M J. Cancer immunoediting and resistance to T cell-based immunotherapy[J]. Nat Rev Clin Oncol, 2019, 16(3): 151-167. doi: 10.1038/s41571-018-0142-8 pmid: 30523282
[8]	KALBASI A, RIBAS A. Tumour-intrinsic resistance to immune checkpoint blockade[J]. Nat Rev Immunol, 2020, 20(1): 25-39. doi: 10.1038/s41577-019-0218-4 pmid: 31570880
[9]	WANG Y, TONG Z, ZHANG W H, et al. FDA-approved and emerging next generation predictive biomarkers for immune checkpoint inhibitors in cancer patients[J]. Front Oncol, 2021, 11: 683419. doi: 10.3389/fonc.2021.683419
[10]	ZHOU C B, ZHOU Y L, FANG J Y. Gut microbiota in cancer immune response and immunotherapy[J]. Trends Cancer, 2021, 7(7): 647-660. doi: 10.1016/j.trecan.2021.01.010
[11]	AHN S, CHUNG Y R, SEO A N, et al. Changes and prognostic values of tumor-infiltrating lymphocyte subsets after primary systemic therapy in breast cancer[J]. PLoS One, 2020, 15(5): e0233037. doi: 10.1371/journal.pone.0233037
[12]	ZHANG Q, LUO J, WU S, et al. Prognostic and predictive impact of circulating tumor DNA in patients with advanced cancers treated with immune checkpoint blockade[J]. Cancer Discov, 2020, 10(12): 1842-1853. doi: 10.1158/2159-8290.CD-20-0047 pmid: 32816849
[13]	DOROSHOW D B, BHALLA S, BEASLEY M B, et al. PD-L1 as a biomarker of response to immune-checkpoint inhibitors[J]. Nat Rev Clin Oncol, 2021, 18(6): 345-362. doi: 10.1038/s41571-021-00473-5 pmid: 33580222
[14]	ZOUEIN J, KESROUANI C, KOURIE H R. PD-L1 expression as a predictive biomarker for immune checkpoint inhibitors: between a dream and a nightmare[J]. Immunotherapy, 2021, 13(12): 1053-1065. doi: 10.2217/imt-2020-0336 pmid: 34190579
[15]	COLLINS G S, REITSMA J B, ALTMAN D G, et al. Transparent reporting of a multivariable prediction model for individual prognosis or diagnosis (TRIPOD): the TRIPOD statement[J]. J Clin Epidemiol, 2015, 68(2): 134-143. doi: 10.1016/j.jclinepi.2014.11.010 pmid: 25579640
[16]	STEYERBERG E W, MOONS K G M, VAN DER WINDT D A, et al. Prognosis Research Strategy (PROGRESS) 3: prognostic model research[J]. PLoS Med, 2013, 10(2): e1001381. doi: 10.1371/journal.pmed.1001381
[17]	GRAY E P, TEARE M D, STEVENS J, et al. Risk prediction models for lung cancer: a systematic review[J]. Clin Lung Cancer, 2016, 17(2): 95-106. doi: 10.1016/j.cllc.2015.11.007 pmid: 26712102
[18]	KAMATH P S, WIESNER R H, MALINCHOC M, et al. A model to predict survival in patients with end-stage liver disease[J]. Hepatology, 2001, 33(2): 464-470. doi: 10.1053/jhep.2001.22172 pmid: 11172350
[19]	BAI X, WU D H, MA S C, et al. Development and validation of a genomic mutation signature to predict response to PD-1 inhibitors in non-squamous NSCLC: a multicohort study[J]. J Immunother Cancer, 2020, 8(1): e000381. doi: 10.1136/jitc-2019-000381
[20]	CHOWELL D, YOO S K, VALERO C, et al. Improved prediction of immune checkpoint blockade efficacy across multiple cancer types[J]. Nat Biotechnol, 2022, 40(4): 499-506. doi: 10.1038/s41587-021-01070-8
[21]	DAI Y F, QIANG W J, LIN K Q, et al. An immune-related gene signature for predicting survival and immunotherapy efficacy in hepatocellular carcinoma[J]. Cancer Immunol Immunother, 2021, 70(4): 967-979. doi: 10.1007/s00262-020-02743-0 pmid: 33089373
[22]	GU X Y, GUAN J, XU J, et al. Model based on five tumour immune microenvironment-related genes for predicting hepatocellular carcinoma immunotherapy outcomes[J]. J Transl Med, 2021, 19(1): 26. doi: 10.1186/s12967-020-02691-4 pmid: 33407546
[23]	YI M, LI A P, ZHOU L H, et al. Immune signature-based risk stratification and prediction of immune checkpoint inhibitor’s efficacy for lung adenocarcinoma[J]. Cancer Immunol Immunother, 2021, 70(6): 1705-1719. doi: 10.1007/s00262-020-02817-z
[24]	HONG S, ZHANG Y M, CAO M M, et al. Hypoxic characteristic genes predict response to immunotherapy for urothelial carcinoma[J]. Front Cell Dev Biol, 2021, 9: 762478. doi: 10.3389/fcell.2021.762478
[25]	SUN Z L, JING C Y, GUO X D, et al. Comprehensive analysis of the immune infiltrates of pyroptosis in kidney renal clear cell carcinoma[J]. Front Oncol, 2021, 11: 716854. doi: 10.3389/fonc.2021.716854
[26]	ZHANG C Q, ZHANG Z H, SUN N, et al. Identification of a costimulatory molecule-based signature for predicting prognosis risk and immunotherapy response in patients with lung adenocarcinoma[J]. Oncoimmunology, 2020, 9(1): 1824641. doi: 10.1080/2162402X.2020.1824641
[27]	XIANG R S, RONG Y P, GE Y H, et al. Cell differentiation trajectory predicts patient potential immunotherapy response and prognosis in gastric cancer[J]. Aging (Albany NY), 2021, 13(4): 5928-5945.
[28]	LEADER A M, GROUT J A, MAIER B B, et al. Single-cell analysis of human non-small cell lung cancer lesions refines tumor classification and patient stratification[J]. Cancer Cell, 2021, 39(12): 1594-1609.e12. doi: 10.1016/j.ccell.2021.10.009 pmid: 34767762
[29]	LU M, WU K H, TRUDEAU S, et al. A genomic signature for accurate classification and prediction of clinical outcomes in cancer patients treated with immune checkpoint blockade immunotherapy[J]. Sci Rep, 2020, 10(1): 20575. doi: 10.1038/s41598-020-77653-3 pmid: 33239757
[30]	GAO L, XUE J, LIU X M, et al. A risk model based on autophagy-related lncRNAs for predicting prognosis and efficacy of immunotherapy and chemotherapy in gastric cancer patients[J]. Aging (Albany NY), 2021, 13(23): 25453-25465.
[31]	NABET B Y, ESFAHANI M S, MODING E J, et al. Noninvasive early identification of therapeutic benefit from immune checkpoint inhibition[J]. Cell, 2020, 183(2): 363-376.e13. doi: 10.1016/j.cell.2020.09.001 pmid: 33007267
[32]	WEI C, WANG M Y, GAO Q L, et al. Dynamic peripheral blood immune cell markers for predicting the response of patients with metastatic cancer to immune checkpoint inhibitors[J]. Cancer Immunol Immunother, 2023: 72(1): 23-37. doi: 10.1007/s00262-022-03221-5
[33]	NEWELL F, PIRES DA SILVA I, JOHANSSON P A, et al. Multiomic profiling of checkpoint inhibitor-treated melanoma: identifying predictors of response and resistance, and markers of biological discordance[J]. Cancer Cell, 2022, 40(1): 88-102.e7. doi: 10.1016/j.ccell.2021.11.012
[34]	HE B X, DONG D, SHE Y L, et al. Predicting response to immunotherapy in advanced non-small cell lung cancer using tumor mutational burden radiomic biomarker[J]. J Immunother Cancer, 2020, 8(2): e000550. doi: 10.1136/jitc-2020-000550
[35]	MU W, JIANG L, SHI Y, et al. Non-invasive measurement of PD-L1 status and prediction of immunotherapy response using deep learning of PET/CT images[J]. J Immunother Cancer, 2021, 9(6): e002118. doi: 10.1136/jitc-2020-002118
[36]	TREBESCHI S, DRAGO S G, BIRKBAK N J, et al. Predicting response to cancer immunotherapy using noninvasive radiomic biomarkers[J]. Ann Oncol, 2019, 30(6): 998-1004. doi: S0923-7534(19)31202-5 pmid: 30895304
[37]	LIU C, GONG J, YU H, et al. A CT-based radiomics approach to predict nivolumab response in advanced non-small cell lung cancer[J]. Front Oncol, 2021, 11: 544339. doi: 10.3389/fonc.2021.544339
[38]	VAIDYA P, BERA K, PATIL P D, et al. Novel, non-invasive imaging approach to identify patients with advanced non-small cell lung cancer at risk of hyperprogressive disease with immune checkpoint blockade[J]. J Immunother Cancer, 2020, 8(2): e001343. doi: 10.1136/jitc-2020-001343
[39]	YANG Y, YANG J C, SHEN L, et al. A multi-omics-based serial deep learning approach to predict clinical outcomes of single-agent anti-PD-1/PD-L1 immunotherapy in advanced stage non-small cell lung cancer[J]. Am J Transl Res, 2021, 13(2): 743-756.
[40]	YANG B, ZHOU L, ZHONG J, et al. Combination of computed tomography imaging-based radiomics and clinicopathological characteristics for predicting the clinical benefits of immune checkpoint inhibitors in lung cancer[J]. Respir Res, 2021, 22(1): 189. doi: 10.1186/s12931-021-01780-2
[41]	DERCLE L, ZHAO B S, GÖNEN M, et al. Early readout on overall survival of patients with melanoma treated with immunotherapy using a novel imaging analysis[J]. JAMA Oncol, 2022, 8(3): 385-392. doi: 10.1001/jamaoncol.2021.6818 pmid: 35050320
[42]	NARDONE V, TINI P, PASTINA P, et al. Radiomics predicts survival of patients with advanced non-small cell lung cancer undergoing PD-1 blockade using Nivolumab[J]. Oncol Lett, 2020, 19(2): 1559-1566. doi: 10.3892/ol.2019.11220 pmid: 31966081
[43]	HINATA M, USHIKU T. Detecting immunotherapy-sensitive subtype in gastric cancer using histologic image-based deep learning[J]. Sci Rep, 2021, 11(1): 22636. doi: 10.1038/s41598-021-02168-4 pmid: 34811485
[44]	BUTNER J D, ELGANAINY D, WANG C X, et al. Mathematical prediction of clinical outcomes in advanced cancer patients treated with checkpoint inhibitor immunotherapy[J]. Sci Adv, 2020, 6(18): eaay6298. doi: 10.1126/sciadv.aay6298
[45]	JI R R, CHASALOW S D, WANG L S, et al. An immune-active tumor microenvironment favors clinical response to ipilimumab[J]. Cancer Immunol Immunother, 2012, 61(7): 1019-1031. doi: 10.1007/s00262-011-1172-6
[46]	JOHNSON D B, ESTRADA M V, SALGADO R, et al. Melanoma-specific MHC-Ⅱ expression represents a tumour-autonomous phenotype and predicts response to anti-PD-1/PD-L1 therapy[J]. Nat Commun, 2016, 7: 10582. doi: 10.1038/ncomms10582
[47]	CHEN Q Y, ZHANG L, MO X K, et al. Current status and quality of radiomic studies for predicting immunotherapy response and outcome in patients with non-small cell lung cancer: a systematic review and meta-analysis[J]. Eur J Nucl Med Mol Imaging, 2021, 49(1): 345-360. doi: 10.1007/s00259-021-05509-7
[48]	WALSH R J, SOO R A. Resistance to immune checkpoint inhibitors in non-small cell lung cancer: biomarkers and therapeutic strategies[J]. Ther Adv Med Oncol, 2020, 12: 1758835920937902.
[49]	BAGCHI S, YUAN R, ENGLEMAN E G. Immune checkpoint inhibitors for the treatment of cancer: clinical impact and mechanisms of response and resistance[J]. Annu Rev Pathol, 2021, 16: 223-249. doi: 10.1146/annurev-pathol-042020-042741 pmid: 33197221
[50]	HOGG S J, BEAVIS P A, DAWSON M A, et al. Targeting the epigenetic regulation of antitumour immunity[J]. Nat Rev Drug Discov, 2020, 19(11): 776-800. doi: 10.1038/s41573-020-0077-5
[51]	CHEN J F, WU P, XIA R, et al. STAT3-induced lncRNA HAGLROS overexpression contributes to the malignant progression of gastric cancer cells via mTOR signal-mediated inhibition of autophagy[J]. Mol Cancer, 2018, 17(1): 6. doi: 10.1186/s12943-017-0756-y
[52]	KILGOUR E, ROTHWELL D G, BRADY G, et al. Liquid biopsy-based biomarkers of treatment response and resistance[J]. Cancer Cell, 2020, 37(4): 485-495. doi: S1535-6108(20)30152-5 pmid: 32289272
[53]	DERCLE L, CONNORS D E, TANG Y, et al. Vol-PACT: a foundation for the NIH public-private partnership that supports sharing of clinical trial data for the development of improved imaging biomarkers in oncology[J]. JCO Clin Cancer Inform, 2018, 2: 1-12. doi: 10.1200/CCI.17.00137 pmid: 30652552
[54]	SUN X Q, HU B. Mathematical modeling and computational prediction of cancer drug resistance[J]. Brief Bioinform, 2018, 19(6): 1382-1399. doi: 10.1093/bib/bbx065 pmid: 28981626
[55]	POLDRACK R A, HUCKINS G, VAROQUAUX G. Establishment of best practices for evidence for prediction: a review[J]. JAMA Psychiatry, 2020, 77(5): 534-540. doi: 10.1001/jamapsychiatry.2019.3671 pmid: 31774490
[56]	BONNETT L J, SNELL K I E, COLLINS G S, et al. Guide to presenting clinical prediction models for use in clinical settings[J]. BMJ, 2019, 365: l737.
[57]	CHENG M L, PECTASIDES E, HANNA G J, et al. Circulating tumor DNA in advanced solid tumors: clinical relevance and future directions[J]. CA Cancer J Clin, 2021, 71(2): 176-190. doi: 10.3322/caac.21650
[58]	IGNATIADIS M, SLEDGE G W, JEFFREY S S. Liquid biopsy enters the clinic-implementation issues and future challenges[J]. Nat Rev Clin Oncol, 2021, 18(5): 297-312. doi: 10.1038/s41571-020-00457-x
[59]	HORVAT T Z, ADEL N G, DANG T O, et al. Immune-related adverse events, need for systemic immunosuppression, and effects on survival and time to treatment failure in patients with melanoma treated with ipilimumab at memorial Sloan Kettering cancer center[J]. J Clin Oncol, 2015, 33(28): 3193-3198. doi: 10.1200/JCO.2015.60.8448 pmid: 26282644
