China Oncology ›› 2025, Vol. 35 ›› Issue (7): 685-694.doi: 10.19401/j.cnki.1007-3639.2025.07.007
• Article • Previous Articles Next Articles
LIU Dan(), ZHANG Guxiang, XIE Dan, XU Yan, XIE Chengfang, TANG Yuxi
Received:
2024-10-23
Revised:
2025-02-06
Online:
2025-07-30
Published:
2025-08-13
Contact:
ZHANG Guxiang
Supported by:
Share article
CLC Number:
LIU Dan, ZHANG Guxiang, XIE Dan, XU Yan, XIE Chengfang, TANG Yuxi. Mechanism of immune escape mediated by T cell depletion induced by TOX signaling pathway in cervical cancer microenvironment[J]. China Oncology, 2025, 35(7): 685-694.

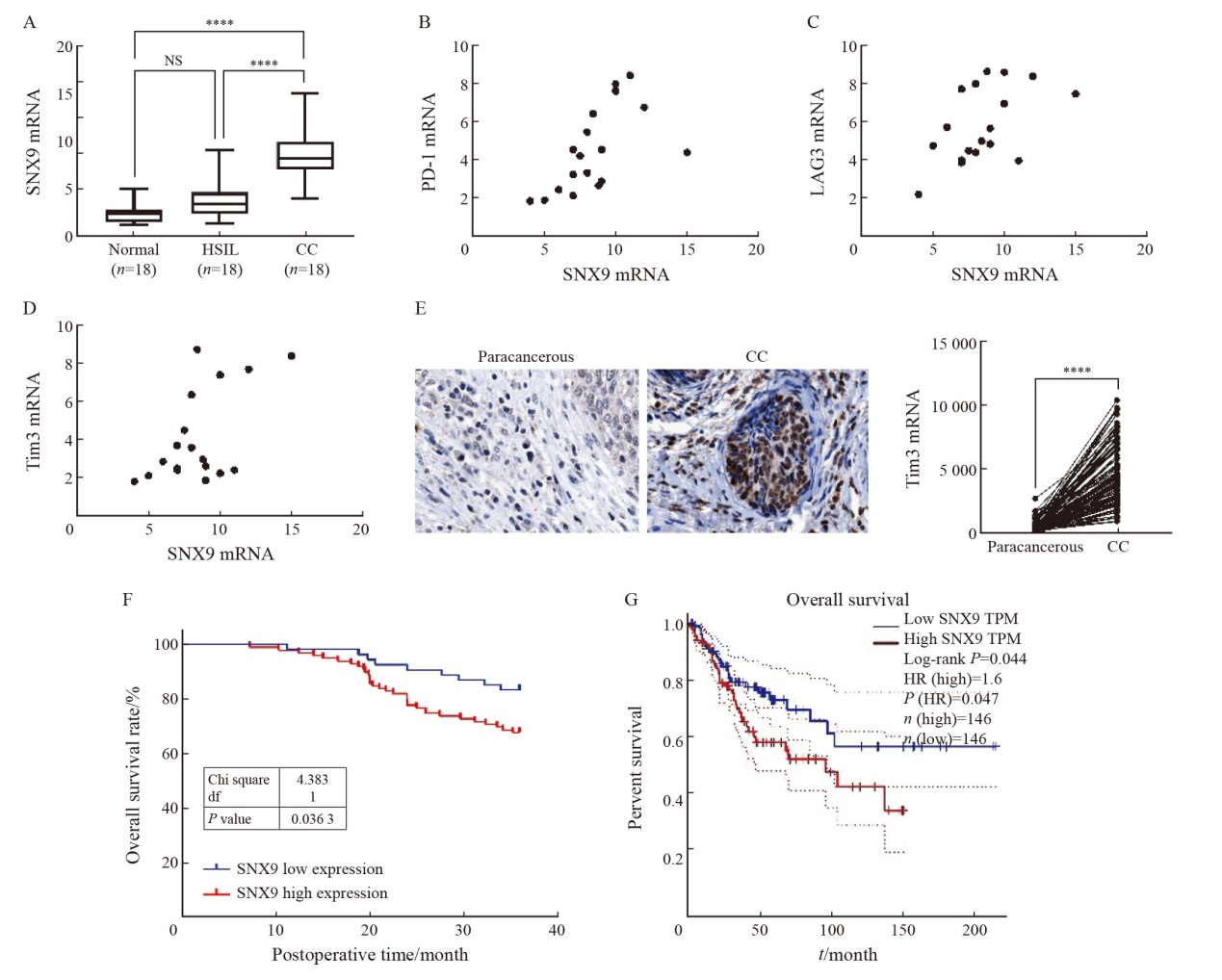

Fig. 1
The expression of snx9 is up-regulated in CC, which is related to poor prognosis A: The level of SNX9 in PBMC of normal cervix (n=18), high squamous intraepithelial lesions (n=18, HSIL) and CC patients (n=18). B-D: Correlation analysis of expressions of SNX9 and PD-1, SNX9 and LAG3, SNX9 and Tim3 in CD8+ T cells of PBMC in patients with CC. E: Comparison of SNX9+ cells in CC and adjacent tissues (DAB color, magnification 200 times). F: Kaplan-Meier was used to analyze the relationship between the expression of SNX9 in tumor tissues and the overall survival in CC patients (n=153). G: GEPIA online database was used to analyze the relationship between the expression of SNX9 in CC tissues and the overall survival time. NS: No significance; ****: P<0.000 1."
Tab. 1
Correlation between the expression of SNX9 in CC and clinicopathological factors [n (%)]"
Characteristic | SNX9 expression | χ2 | P value | |
---|---|---|---|---|
Low (n=54) | High (n=99) | |||
Age/year | 0.06 | 0.814 | ||
<40 | 9 (16.7) | 18 (18.2) | ||
>40 | 45 (83.3) | 81 (81.8) | ||
Differentiation | 8.395 | 0.004 | ||
High/moderate | 51 (94.4) | 75 (75.7) | ||
Low/Poor | 3 (5.6) | 24 (24.3) | ||
FIGO | 28.977 | <0.001 | ||
Ⅰ | 51 (94.4) | 51 (51.5) | ||
Ⅱ | 3 (5.6) | 48 (48.5) | ||
Histology | 9.264 | 0.010 | ||
Squamous cell carcinoma | 42 (77.7) | 87 (87.9) | ||
Adenocarcinoma | 9 (16.7) | 3 (3.0) | ||
Adenosquamous carcinoma | 3 (5.6) | 9 (9.1) | ||
Tumor size/cm | 4.874 | 0.027 | ||
≤4 | 45 (83.3) | 66 (66.7) | ||
>4 | 9 (16.7) | 33 (33.3) | ||
Infiltration of uterine muscle layer | 0.618 | 0.432 | ||
No | 18 (33.3) | 27 (27.3) | ||
Yes | 36 (66.7) | 72 (72.7) | ||
Parauterine infiltration | 30.884 | <0.001 | ||
No | 54 (100) | 78 (78.8) | ||
Yes | 0 (0.0) | 21 (21.2) | ||
Vaginal infiltration | 17.461 | <0.001 | ||
No | 51 (94.4) | 63 (63.6) | ||
Yes | 3 (5.6) | 36 (36.4) | ||
Pelvic lymph node metastasis | 35.875 | <0.001 | ||
No | 51 (94.4) | 45 (45.5) | ||
Yes | 3 (5.6) | 54 (54.5) |

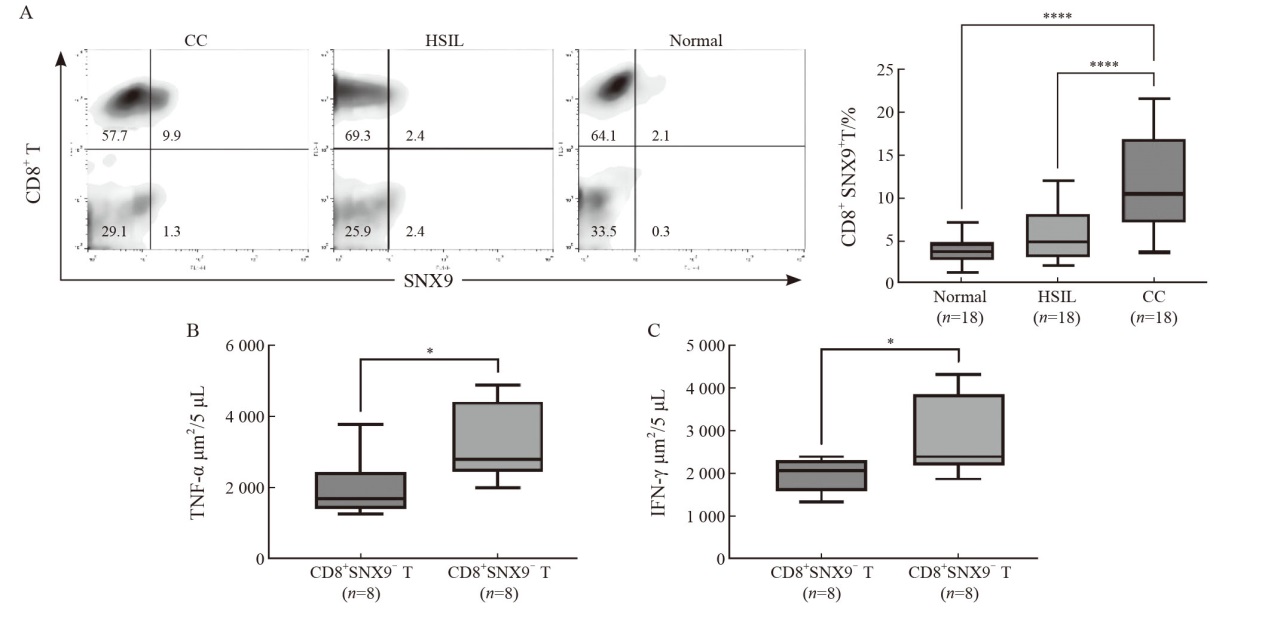

Fig. 2
CD8+SNX9+ T cells were highly expressed in PBMC of CC patients A: CD8+SNX9+ T cells in PBMC of normal cervix (n=18), HSIL(n=18) and CC patients (n=18). B-C: CD8+ T cells were isolated from PBMC. The levels of TNF-α and IFN-γ secreted by CD8+SNX9+T cells and CD8+SNX9-T cells were detected by ELISpot. *: P<0.05; ***: P<0.001; ****: P <0.000 1."

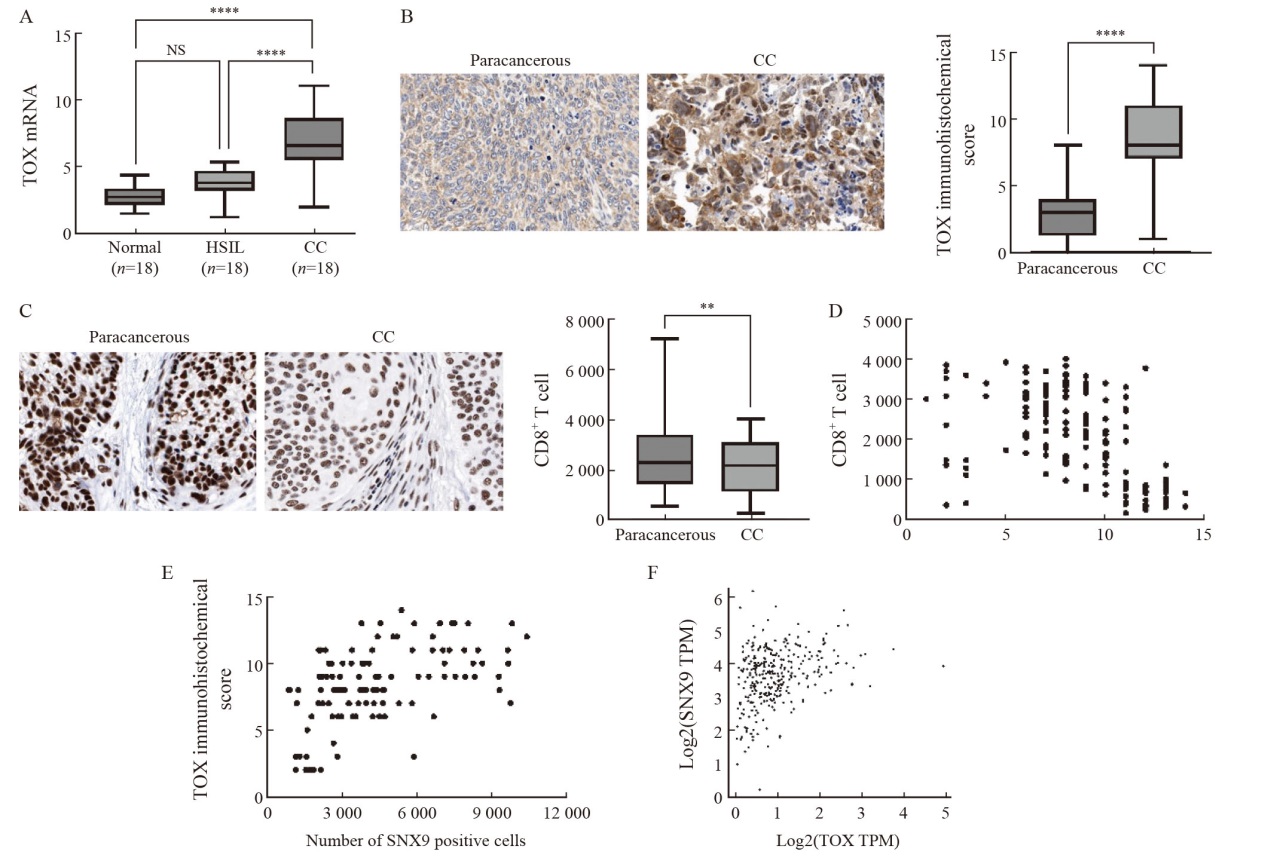

Fig. 3
Up-regulation of SNX9/TOX expression in CC tissue is related to CD8+ T cell depletion A: TOX mRNA levels in normal cervix (n=18), HSIL(n=18) and CC patients (n=18) PBMC. B, C: Comparison of TOX immunohistochemical score and CD8+ T cell level in CC and adjacent tissues (DAB staining, magnification 200 times). D: Correlation analysis between TOX immunohistochemical score and CD8+ T cell level in CC tissues. E: Correlation analysis between TOX immunohistochemical score and SNX9 positive cell level in CC tissues. F: GEPIA online database was used to analyze the correlation between SNX9 and TOX expression in CC tissues. NS: No significance; **: P<0.01; ****: P<0.000 1."

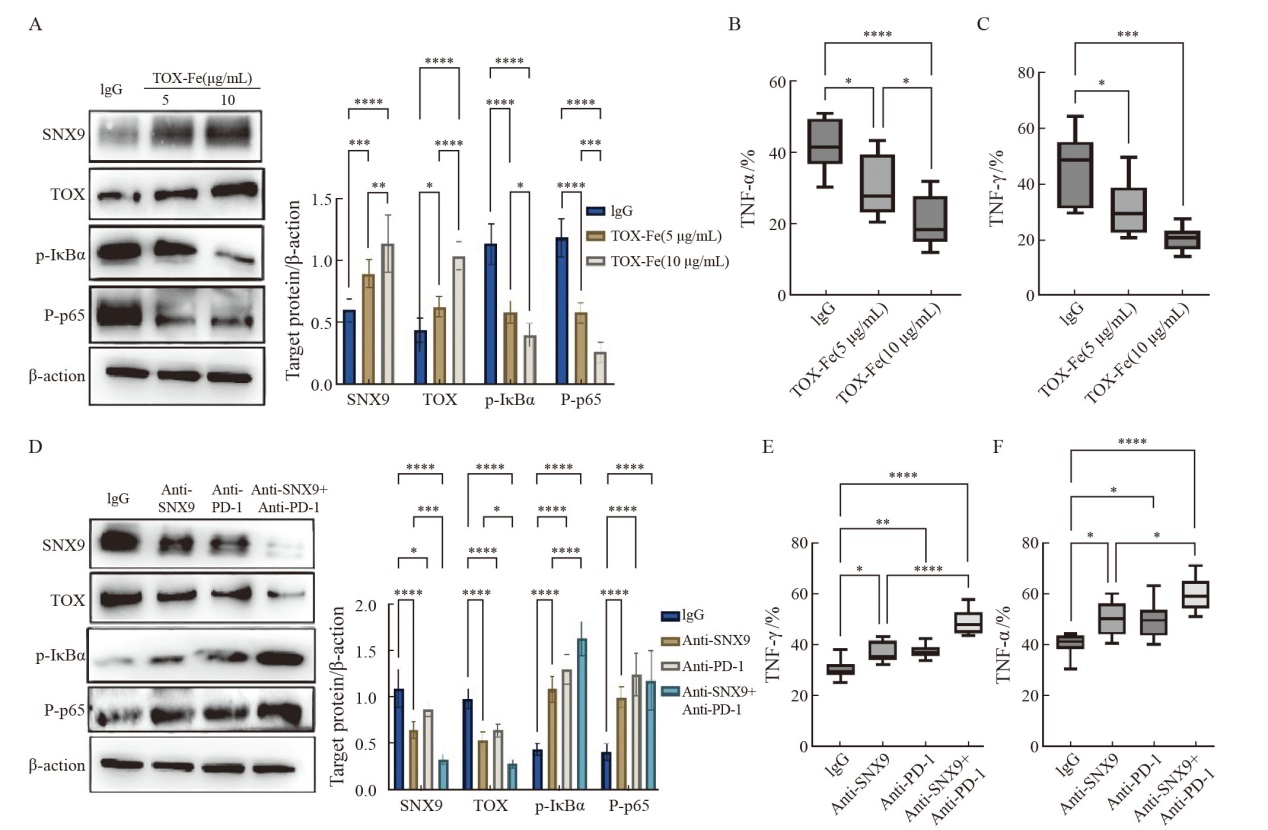

Fig. 4
SNX9 and PD-1 inhibit the expression of p-IκBα and p-P65 proteins and CD8+ T cells produce cytokines A: Immunoblot analysis of SNX9, TOX, p-IκBα and p-P65 protein expression in CD8+ T cells. B, C: ELISpot were used to detect the ability of CD8+ T cells to secrete cytokines IFN-γ and TNF-α. Stimulate CD8+ T cells with αCD3/CD28 and co-culture with tumor cells in the presence of anti-SNX9 antibodies, anti-PD-1 blocking antibodies, or isotype controls. D: Immunoblot analysis of SNX9, TOX, p-IκBα and p-P65 protein expression in CD8+ T cells. E, F: ELISpot were used to detect the ability of CD8+ T cells to secrete cytokines IFN-γ and TNF-α. *: P<0.05; **: P<0.01; ***: P <0.001; ****: P<0.000 1."

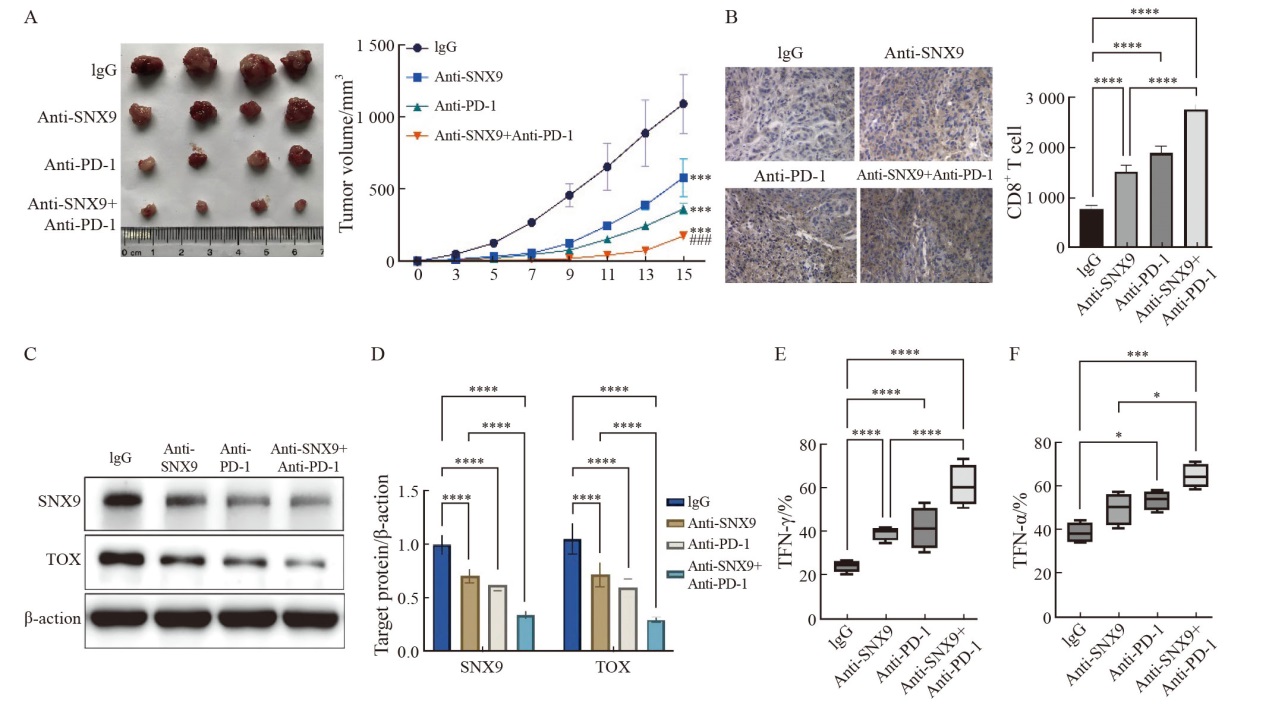

Fig.5
Effects of SNX9 inhibition on the growth of transplanted cervical tumor and the function of CD8+ T lymphocytes in C57BL/6 mice A: Analysis of tumor progression in WT-U14 cell transplantation mice treated with PD-1 blocking antibody, SNX9 blocking antibody, or isotype control. B: Immunohistochemical analysis of CD8+ T cell infiltration levels in mouse tumor tissues (DAB staining, magnification 200×). C: Immunoblot analysis of SNX9 and TOX protein expression in tumor tissues. D, E: ELISpot were used to detect the ability of CD8+ T cells in mice receiving different treatments to secrete TNF-α and IFN-γ. *: P<0.05; **: P<0.01; ***: P<0.001; ****: P<0.000 1."
[1] | HUANG J J, DENG Y Y, BOAKYE D, et al. Global distribution, risk factors, and recent trends for cervical cancer: a worldwide country-level analysis[J]. Gynecol Oncol, 2022, 164(1): 85-92. |
[2] | SINGH D, VIGNAT J, LORENZONI V, et al. Global estimates of incidence and mortality of cervical cancer in 2020: a baseline analysis of the WHO Global Cervical Cancer Elimination Initiative[J]. Lancet Glob Health, 2023, 11(2): e197-e206. |
[3] | LIU L, WANG A H, LIU X L, et al. Blocking TIGIT/CD155 signalling reverses CD8+ T cell exhaustion and enhances the antitumor activity in cervical cancer[J]. J Transl Med, 2022, 20(1): 280. |
[4] |
SHARMA P, GOSWAMI S, RAYCHAUDHURI D, et al. Immune checkpoint therapy-current perspectives and future directions[J]. Cell, 2023, 186(8): 1652-1669.
doi: 10.1016/j.cell.2023.03.006 pmid: 37059068 |
[5] |
LORUSSO D, XIANG Y, HASEGAWA K, et al. Pembrolizumab or placebo with chemoradiotherapy followed by pembrolizumab or placebo for newly diagnosed, high-risk, locally advanced cervical cancer (ENGOT-cx11/GOG-3047/KEYNOTE-A18): a randomised, double-blind, phase 3 clinical trial[J]. Lancet, 2024, 403(10434): 1341-1350.
doi: 10.1016/S0140-6736(24)00317-9 pmid: 38521086 |
[6] |
OAKNIN A, MOORE K, MEYER T, et al. Nivolumab with or without ipilimumab in patients with recurrent or metastatic cervical cancer (CheckMate 358): a phase 1-2, open-label, multicohort trial[J]. Lancet Oncol, 2024, 25(5): 588-602.
doi: 10.1016/S1470-2045(24)00088-3 pmid: 38608691 |
[7] |
TREFNY M P, KIRCHHAMMER N, DER MAUR P A, et al. Deletion of SNX9 alleviates CD8 T cell exhaustion for effective cellular cancer immunotherapy[J]. Nat Commun, 2023, 14(1): 86.
doi: 10.1038/s41467-022-35583-w pmid: 36732507 |
[8] | PHILIP M, SCHIETINGER A. CD8+ T cell differentiation and dysfunction in cancer[J]. Nat Rev Immunol, 2022, 22(4): 209-223. |
[9] | CHEN J, SONG Y, MIAO F, et al. PDL1-positive exosomes suppress antitumor immunity by inducing tumor-specific CD8+ T cell exhaustion during metastasis[J]. Cancer Sci, 2021, 112(9): 3437-3454. |
[10] |
BAI R L, LV Z, XU D S, et al. Predictive biomarkers for cancer immunotherapy with immune checkpoint inhibitors[J]. Biomark Res, 2020, 8: 34.
doi: 10.1186/s40364-020-00209-0 pmid: 32864131 |
[11] | MAKUKU R, KHALILI N, RAZI S, et al. Current and future perspectives of PD-1/PDL-1 blockade in cancer immunotherapy[J]. J Immunol Res, 2021, 2021: 6661406. |
[12] | WANG Y Z, WANG J S, DU J, et al. Clinical benefit analysis of PD-1 inhibitors in patients with advanced, recurrent or metastatic cervical cancer: a meta-analysis and systematic review[J]. Front Immunol, 2024, 15: 1305810. |
[13] | LEE J B, KHAN D H, HURREN R, et al. Venetoclax enhances T cell-mediated antileukemic activity by increasing ROS production[J]. Blood, 2021, 138(3): 234-245. |
[14] | WEI W, CHEN Z N, WANG K. CRISPR/Cas9: a powerful strategy to improve CAR-T cell persistence[J]. Int J Mol Sci, 2023, 24(15): 12317. |
[15] | NIU H Y, WANG H Q. TOX regulates T lymphocytes differentiation and its function in tumor[J]. Front Immunol, 2023, 14: 990419. |
[16] | AHMAD A, ANSARI I A. Carvacrol exhibits chemopreventive potential against cervical cancer cells via caspase-dependent apoptosis and abrogation of cell cycle progression[J]. Anticancer Agents Med Chem, 2021, 21(16): 2224-2235. |
[17] |
FENG X, SHAN R, HU X M. The linkage of NF-κB signaling pathway-associated long non-coding RNAs with tumor microenvironment and prognosis in cervical cancer[J]. BMC Med Genomics, 2023, 16(1): 169.
doi: 10.1186/s12920-023-01605-9 pmid: 37461017 |
[18] | WANG D J, ZOU F, LI Y, et al. Targeting MELK improves PD-1 blockade efficiency in cervical cancer via enhancing antitumor immunity[J]. Mol Ther Oncol, 2024, 32(1): 200759. |
[19] |
BORST J, BUSSELAAR J, BOSMA D M T, et al. Mechanism of action of PD-1 receptor/ligand targeted cancer immunotherapy[J]. Eur J Immunol, 2021, 51(8): 1911-1920.
doi: 10.1002/eji.202048994 pmid: 34106465 |
[20] | BUDIMIR N, THOMAS G D, DOLINA J S, et al. Reversing T-cell exhaustion in cancer: lessons learned from PD-1/PD-L1 immune checkpoint blockade[J]. Cancer Immunol Res, 2022, 10(2): 146-153. |
[21] | CILLO A R, CARDELLO C, SHAN F, et al. Blockade of LAG-3 and PD-1 leads to co-expression of cytotoxic and exhaustion gene modules in CD8+ T cells to promote antitumor immunity[J]. Cell, 2024, 187(16): 4373-4388.e15. |
[22] | ECKER M, SCHREGLE R, KAPOOR-KAUSHIK N, et al. SNX9-induced membrane tubulation regulates CD28 cluster stability and signalling[J]. eLife, 2022, 11: e67550. |
