The diagnostic value of zero echo time magnetic resonance imaging for skull base bone invasion in nasopharyngeal carcinoma

doi:10.19401/j.cnki.1007-3639.2025.10.007

Abstract

Abstract:

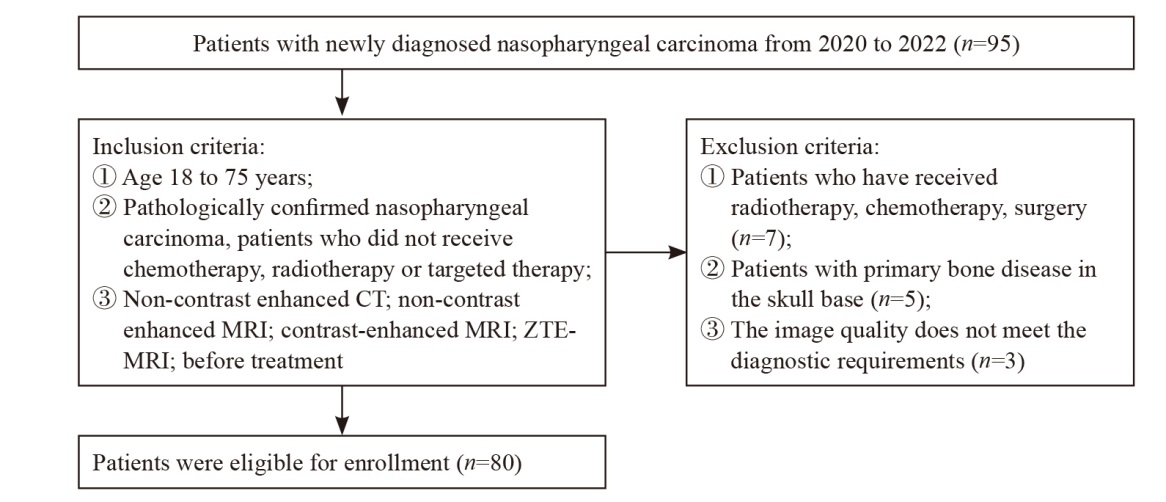

Background and purpose: Owing to the reliance on computed tomography (CT) for evaluating skull-base bone invasion in nasopharyngeal carcinoma and the potential harm of ionizing radiation from CT, zero echo time magnetic resonance imaging (ZTE-MRI) offers high-resolution bone delineation without radiation exposure. Therefore, this study aimed to systematically assess the diagnostic performance of ZTE-MRI for detecting skull-base bone invasion and to explore its clinical feasibility as an alternative to CT. Methods: This prospective study collected 95 nasopharyngeal carcinoma patients treated in Fujian Provincial Cancer Hospital from April 2020 to December 2022 as the research subjects. The patients who do not meet the inclusion standards would be excluded. Using the GE Discovery 750W 3.0T MR scanner to obtain unenhanced scan and enhanced scan, using ZTE-MRI technology to obtain ZTE-MRI and CT image. The results of the imaging scans were used to independently assess skull base bone invasion by two radiologists. This study was approved by the Ethics Committee of Fujian Cancer Hospital (K2025-314-01), and informed consent from the patients were obtained. Results: A total of 80 nasopharyngeal carcinoma patients were included in the final analysis. There was a high degree of consistency between CT diagnosis of nasopharyngeal carcinoma skull base bone invasion and of gold standards, and the difference was statistically significant (κ=0.645, P<0.001). There was a high degree of consistency between ZTE-MRI diagnosis of nasopharyngeal carcinoma skull base bone invasion and of gold standards, and the difference was statistically significant (κ=0.774, P<0.001). There was a high degree of consistency between ZTE-MRI combined with conventional MRI diagnosis of nasopharyngeal carcinoma skull base bone invasion and gold standards, and the difference was statistically significant (κ=0.912, P<0.001). Conclusion: ZTE-MRI technology provides "like CT" images for the skull base bone invasion in nasopharyngeal carcinoma, and ZTE-MRI technology can replace CT examination in clinical practice.

Key words: Nasopharyngeal carcinoma, Skull base, Computed tomography, Magnetic resonance imaging, Zero echo time

CLC Number:

R739.62

LIN Jiahao, FENG Meimei, LIN Kongqi, LIN Fengjie, CHEN Yunbin. The diagnostic value of zero echo time magnetic resonance imaging for skull base bone invasion in nasopharyngeal carcinoma[J]. China Oncology, 2025, 35(10): 946-951.

Figures/Tables 6

Fig. 1

Fig. 2

Fig. 3

Tab. 1

Tab. 2

Tab. 3

References 16

[1]	谢民强. 鼻咽癌治疗研究进展[J]. 中国耳鼻咽喉颅底外科杂志, 2023, 29(6): 1-10.
	XIE M Q. Research progress in the treatment of nasopharyngeal carcinoma[J]. Chin J Otorhinolaryngol Skull Base Surg, 2023, 29(6): 1-10.
[2]	马光, 区晓敏, 胡超苏, 等. 治疗前¹⁸F-FLT和¹⁸F-FDG PET/CT摄取异质性在局部晚期鼻咽癌疗效预测中的价值[J]. 中国癌症杂志, 2022, 32(4): 309-315. doi: 10.19401/j.cnki.1007-3639.2022.04.003
	MA G, OU X M, HU C S, et al. Value of pretreatment ¹⁸F-FLT PET/CT and ¹⁸F-FDG PET/CT uptake heterogeneity for early prediction of treatment outcome in locally advanced nasopharyngeal carcinoma[J]. China Oncol, 2022, 32(4): 309-315.
[3]	PAN J J, MAI H Q, NG W T, et al. Ninth version of the AJCC and UICC nasopharyngeal cancer TNM staging classification[J]. JAMA Oncol, 2024, 10(12): 1627. doi: 10.1001/jamaoncol.2024.4354
[4]	CHAUHAN V, HARIKISHORE K, GIRDHAR S, et al. Utility of zero echo time (ZTE) sequence for assessing bony lesions of skull base and calvarium[J]. Clin Radiol, 2024, 79(12): e1504-e1513. doi: 10.1016/j.crad.2024.08.029
[5]	冯妹妹, 饶艳莺, 林家豪, 等. 磁共振零回波时间序列评估鼻咽癌颅底骨质侵犯的诊断价值[J]. 肿瘤学杂志, 2021, 27(11): 915-921.
	FENG M M, RAO Y Y, LIN J H, et al. Magnetic resonance imaging zero echo time sequence in evaluation of skull base invasion of nasopharyngeal carcinoma[J]. J Chin Oncol, 2021, 27(11): 915-921.
[6]	BRAY F, LAVERSANNE M, SUNG H, et al. Global cancer statistics 2022: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries[J]. CA Cancer J Clin, 2024, 74(3): 229-263.
[7]	凌鑫, 张培栋, 汪娟. MRI联合CT诊断鼻咽癌患者早期颅底骨侵犯的价值及其对临床决策的影响[J]. 中国耳鼻咽喉头颈外科, 2019, 26(4): 187-190.
	LING X, ZHANG P D, WANG J. Value of MRI combined with CT in the diagnosis of early skull base invasion in patients with nasopharyngeal carcinoma and its influence on clinical decision-making[J]. Chin Arch Otolaryngol Head Neck Surg, 2019, 26(4): 187-190.
[8]	聂存伟, 王冠, 马秀梅, 等. 磁共振成像联合电子计算机断层扫描在诊断鼻咽癌早期颅底骨侵犯中的应用价值[J]. 中国临床实用医学, 2021, 12(4): 39-42.
	NIE C W, WANG G, MA X M, et al. Application value of magnetic resonance imaging combined with computerized tomography in the diagnosis of early skull base bone invasion of nasopharyngeal carcinoma[J]. China Clin Pract Med, 2021, 12(4): 39-42.
[9]	杨宁, 刘冬. SPECT/CT断层融合显像与磁共振成像对原发性骨肿瘤的诊断价值[J]. 中国医师杂志, 2020, 22(1): 87-90.
	YANG N, LIU D. Diagnostic value of SPECT/CT tomographic fusion imaging and magnetic resonance imaging in primary bone tumors[J]. J Chin Physician, 2020, 22(1): 87-90.
[10]	MA G, GU B X, HU J Y, et al. Pretreatment (18)F-FDG uptake heterogeneity can predict treatment outcome of carbon ion radiotherapy in patients with locally recurrent nasopharyngeal carcinoma[J]. Ann Nucl Med, 2021, 35(7): 834-842. doi: 10.1007/s12149-021-01621-8
[11]	BYUN H, HAN D, CHUN H J, et al. Multiparametric quantification of T1 and T2 relaxation time of bone metastasis in comparison with red or fatty bone marrow using magnetic resonance fingerprinting[J]. Skeletal Radiol, 2024, 53(6): 1071-1080. doi: 10.1007/s00256-023-04521-2
[12]	ZHAO Y J, HAO Z P, LIU W V, et al. Zero-echo time magnetic resonance imaging for visualizing pulmonary neoplasms[J]. BMC Med Imaging, 2025, 25(1): 274. doi: 10.1186/s12880-025-01666-5
[13]	LIN Y, TAN E T, CAMPBELL G, et al. How I do it: three-dimensional MR neurography and zero echo time MRI for rendering of peripheral nerve and bone[J]. Radiology, 2025, 316(1): e241604. doi: 10.1148/radiol.241604
[14]	WEIGER M, PRUESSMANN K P, HENNEL F. MRI with zero echo time: hard versus sweep pulse excitation[J]. Magn Reson Med, 2011, 66(2): 379-389. doi: 10.1002/mrm.22799 pmid: 21381099
[15]	CARRETERO-GÓMEZ L, FUNG M, WIESINGER F, et al. Deep learning-enhanced zero echo time MRI for glenohumeral assessment in shoulder instability: a comparative study with CT[J]. Skeletal Radiol, 2025, 54(6): 1263-1273. doi: 10.1007/s00256-024-04830-0
[16]	LI K Y, KWOK H M, PAN N Y, et al. Pre-treatment and post-treatment nasopharyngeal carcinoma imaging: imaging updates, pearls and pitfalls[J]. Neuroradiology, 2025, 67(4): 1023-1047. doi: 10.1007/s00234-025-03596-z

ZTE-MRI	Standard imaging diagnosis n		Total n	κ value	P value
ZTE-MRI	(+)	(-)	Total n	κ value	P value
(+)	50	1	51	0.774	0.001
(-)	7	22	29	0.774	0.001
Total	57	23	80

ZTE-MRI combined with conventional MRI	Standard imaging diagnosis n		Total n	κ value	P value
ZTE-MRI combined with conventional MRI	(+)	(-)	Total n	κ value	P value
(+)	54	0	54	0.912	0.001
(-)	3	23	26	0.912	0.001
Total	57	23	80
