共培养策略在类器官研究中的应用进展

doi:10.19401/j.cnki.1007-3639.2023.03.014

摘要/Abstract

摘要：

类器官作为一种良好的体外研究模型，在生物医学领域中的应用越来越广泛。通过采用各种组织培养技术开发自组装的3D结构，类器官可重现器官固有结构中细胞的高度复杂性，因此被广泛用于研究调节机体发育和疾病的机制、高通量药物筛选及个性化治疗等。为更好地重现微环境内细胞间的相互作用，共培养策略已经扩展到更多的细胞类型，共培养策略的迅速发展使类器官技术的应用前景更加广阔，并为治疗人类疾病和再生医学开辟了新的道路。本文阐述共培养策略在类器官生成中的作用，并重点介绍不同细胞成分及微生物组与类器官共培养的应用，以期为构建开发具有更高体内模拟程度的类器官提供参考和帮助。

关键词: 共培养, 类器官, 疾病建模, 细胞间相互作用, 微环境

Abstract:

As a good in vitro research model, organoids are more and more widely used in the biomedical field. By developing self-assembled 3D structures using various tissue culture techniques, organoids can rebuild the high complexity of cells in the inherent structure of the organ, and are therefore unanimously used to study mechanisms regulating body development and disease, high-throughput drug screening, and personalized treatment and so on. To better recapitulate cell-to-cell interactions within the microenvironment, co-culture strategies have been extended to more cell types, and their rapid development offers broader prospects for organoids and paves the way for the treatment of human diseases and regenerative medicine. This review discussed the role of co-culture strategies in organoid generation, and focused on the application of various cellular components and microorganisms in organoid construction, thereby providing reference and help for scholars to construct and develop organoids with a higher degree of in vivo simulation.

Key words: Co-culture, Organoid, Disease modeling, Cell-to-cell interactions, Microenvironment

中图分类号:

R73-35+1

芦瑜, 席雨梦, 何晓明, 杨少坤, 张佳, 王雷, 何朝星, 向柏. 共培养策略在类器官研究中的应用进展[J]. 中国癌症杂志, 2023, 33(3): 293-302.

LU Yu, XI Yumeng, HE Xiaoming, YANG Shaokun, ZHANG Jia, WANG Lei, HE Chaoxing, XIANG Bai. Advances in the application of co-culture strategies in organoids[J]. China Oncology, 2023, 33(3): 293-302.

图/表 3

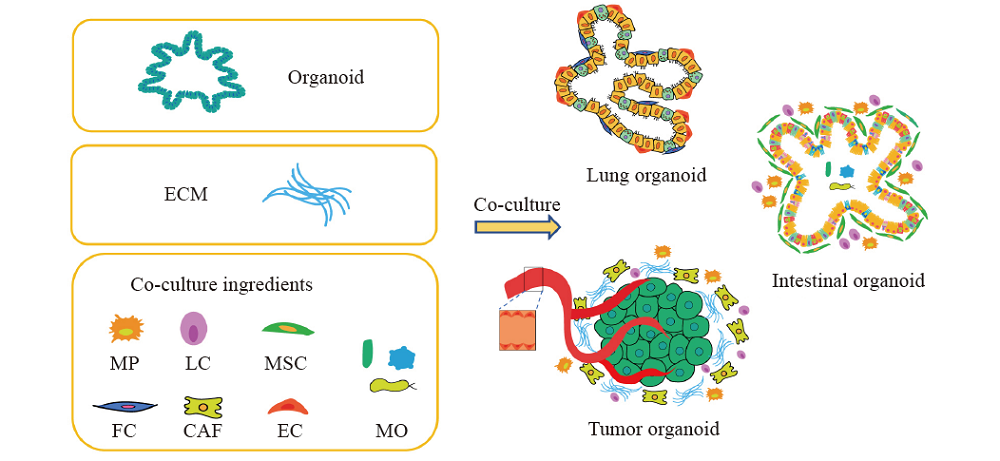

图1

表1

免疫细胞和类器官共培养的实例"

Organoid type	Components used	Platform and matrix	Type of disease	Main outcomes	Treatment method	Reference
Human-derived autologous organoid	DC and the patient’s CD8⁺ T cells	Cell-basement membrane matrix	Gastric cancer	Predicting PD-L1 treatment efficacy and patient prognosis in cancer	Immune checkpoint	[8]
Murine and human PDAC autologous organoid	CTL/MDSC	Matrigel	PC	The efficacy of combination therapy and targeted therapy was tested	PD-1 inhibition and MDSC depletion	[9-10]
Primary organoids derived from surgical specimens	T lymphocytes	Matrigel	CRC	CEA-TCB’s performance against three-dimensional tumor organoids	CEA-CD3 T cell bispecific antibody	[11]
Patient-derived organoid	T cell	Matrigel	Melanoma	Testing the migration and cytotoxic effector function of expanded γδT cells in patient- derived melanoma organoid	Adoptive immunotherapy	[12]
An early-stage human brain organoid	Embryonal CNS tumors and Zika virus	Matrigel	CNS	Analysis of the oncolytic role of Zika virus as an oncolytic virus	Oncolytic virus	[13]
Autologous tumor organoid	Human PBMC-derived DC	BME 2	BC	The tumor suppressor and immune-activating effects of HELA-Exos were explored in patient-derived organoids	Cancer vaccine	[14]
Human epithelial colon organoid lines derived from rectal biopsy samples	Cryopreserved primary human CD4⁺ T cells	Transwell	IBD	Determining the mechanism by which IL-22 regulates intestinal epithelial cell function	—	[16]
The epithelial layer from fetal ISC	Fetal CD4⁺ Tem cells	Matrigel	NEC	TNF-α-producing CD4⁺ T cells promote mucosal development in the fetal gut but also mediate inflammation during preterm birth	—	[17]
Murine small intestine organoids	ILC1	Matrigel	Inflammation	ILC1 may exacerbate fibrosis and tumor growth when enriched in inflamed patient tissue	—	[19]
PDO	PBMC	Matrigel	GC	Dexamethasone can increase the sensitivity of ICI in coculture system	Immune checkpoint	[21]
Autologous tumor organoids	Autologous peripheral blood lymphocytes	Geltrex	CRC or NSCLC	This enables the establishment of ex vivo test systems for T-cell-based immunotherapy at the level of the individual patient	—	[22]
Tissue-derived human gastric organoids	MoDC	Microfluidics and V-ORG-3	—	Studying DC-epithelial cell interactions in the human stomach	—	[24]
Murine intestinal tumor organoids	IEL	Matrigel	—	Abundant IEL in the small intestine may help reduce the number of tumors	—	[25]

表1

表2

成纤维细胞和类器官的共培养示例"

Organoid type	Components used	Platform and matrix	Main outcomes	Detection technology	Reference
CRC PDO	CRC-derived CAF	Matrigel	Some oncogenic signal cascades induced by cell-cell interaction between organoids and CAF were mediated by the signal pathways related to immune responses	DNA microarray; NCC oncopanel	[30]
CRC PDO	CAF	Hyaluronan-gelatin hydrogel	Co-culture of CRC PDO with CAF resulted in enhanced PDO growth and drug resistance	RNA- and whole-exome sequencing; Immunostaining and immunohistochemistry; Viability staining	[31]
Primary liver tumor-derived organoids	CAF	Transwell	CAF promoted tumor organoid growth via paracrine signaling. Vice versa, cancer cells secrete paracrine factors regulating CAF physiology	Quantitative real-time reverse-transcription PCR; Immunohistochemistry and immunofluorescence	[32]
OSCC PDO	Primary CAF	Matrigel	Notch activity contributes to biogenesis of OSCC-associated fibroblasts	Bright phase and fluorescence imaging; Immunohistochemical analysis	[34]
Human iPSC-derived HLOs (LUAD)	Human fetal fibroblast	Matrigel	HLOs that overexpressed HER2 transformed to tumor-like structures similar to atypical adenomatous hyperplasia	RNA sequence analysis; Immunocytochemistry; Immunohistochemistry; EdU assay; Real-time-quantitative reverse-transcription PCR	[35]
Generate organoids from PC-9 cells	Podoplanin (+) CAF	StemPro human embryonic stem cell serum-free medium	Growth-promoting effect of podoplanin (+) CAF in cancer cells	Immunofluorescence; Immunohistochemical	[43]
CRC PDO	CRC-derived CAF	GelMA	Acoustic 3D bioprinting technology can be widely used for establishing various microtissues for modeling cancer invasion and other diseases	Immunofluorescence staining; Staining of tissue sections	[36]
PDAC PDO	Human CAF	Matrigel	CAF maintain the differentiated PDAC phenotype through secreting niche factors and induce distinct drug responses	Immunohistochemistry and immunofluorescent staining; Transcriptome analysis; RNA extraction and quantitative reverse-transcription PCR	[37]
Organoid models of breast cancer cell lines	CD36⁺ fibroblasts	Matrigel	Fibroblasts inhibit organoid growth and normalizes basal and lateral polarities	Brightfield or immunofluorescent microscopy and robust image analysis	[38]
PDAC tumor organoids	CAF	Transwell; Matrigel	CAF confer gemcitabine resistance of PDAC cells induced by CAF-derived hepatocyte growth factor	Immunofluorescence staining	[40]
Primary CRC organoids derived from surgical specimens	T cells and autologous CAF	Matrigel	Testing the costimulatory effect of a fibroblast activating protein (FAP)-targeted 4-1BBL bispecific antibody fusion protein currently in clinical trials	Confocal videomicroscopy	[11]
LNCaP or PC3 organoids	Prostate cancer-derived CAF	Matrigel	Targeting AR/FlnA complexes by stitching peptides provides a potential new strategy for PC therapy	PCR; IP; Co-IP; Rac pull-down assay and Western blot	[42]

表2

参考文献 63

[1]	PRIOR N, INACIO P, HUCH M. Liver organoids: from basic research to therapeutic applications[J]. Gut, 2019, 68(12): 2228-2237. doi: 10.1136/gutjnl-2019-319256 pmid: 31300517
[2]	LAU H C H, KRANENBURG O, XIAO H P, et al. Organoid models of gastrointestinal cancers in basic and translational research[J]. Nat Rev Gastroenterol Hepatol, 2020, 17(4): 203-222. doi: 10.1038/s41575-019-0255-2 pmid: 32099092
[3]	Models for immuno-oncology research[J]. Cancer Cell, 2020, 38(2): 145-147. doi: S1535-6108(20)30371-8 pmid: 32781038
[4]	SMOLAR J, HORST M, SALEMI S, et al. Predifferentiated smooth muscle-like adipose-derived stem cells for bladder engineering[J]. Tissue Eng Part A, 2020, 26(17/18): 979-992. doi: 10.1089/ten.tea.2019.0216
[5]	YUKI K, CHENG N, NAKANO M, et al. Organoid models of tumor immunology[J]. Trends Immunol, 2020, 41(8): 652-664. doi: S1471-4906(20)30134-4 pmid: 32654925
[6]	HOFER M, LUTOLF M P. Engineering organoids[J]. Nat Rev Mater, 2021, 6(5): 402-420. doi: 10.1038/s41578-021-00279-y
[7]	SAHIN U. Studying tumor-reactive T cells: a personalized organoid model[J]. Cell Stem Cell, 2018, 23(3): 318-319. doi: S1934-5909(18)30400-4 pmid: 30193129
[8]	CHAKRABARTI J, KOH V, SO J, et al. A preclinical human-derived autologous gastric cancer organoid/immune cell co-culture model to predict the efficacy of targeted therapies[J]. J Vis Exp, 2021, (173).
[9]	HOLOKAI L, CHAKRABARTI J, LUNDY J, et al. Murine- and human-derived autologous organoid/immune cell co-cultures as pre-clinical models of pancreatic ductal adenocarcinoma[J]. Cancers, 2020, 12(12): 3816. doi: 10.3390/cancers12123816
[10]	CHAKRABARTI J, HOLOKAI L, SYU L, et al. Hedgehog signaling induces PD-L1 expression and tumor cell proliferation in gastric cancer[J]. Oncotarget, 2018, 9(100): 37439-37457. doi: 10.18632/oncotarget.26473 pmid: 30647844
[11]	TEIJEIRA A, MIGUELIZ I, GARASA S, et al. Three-dimensional colon cancer organoids model the response to CEA-CD3 T-cell engagers[J]. Theranostics, 2022, 12(3): 1373-1387. doi: 10.7150/thno.63359 pmid: 35154495
[12]	OU L L, WANG H S, LIU Q, et al. Dichotomous and stable gamma delta T-cell number and function in healthy individuals[J]. J Immunother Cancer, 2021, 9(5): e002274.
[13]	FERREIRA R O, GRANHA I, FERREIRA R S, et al. Effect of serial systemic and intratumoral injections of oncolytic ZIKV BR in mice bearing embryonal CNS tumors[J]. Viruses, 2021, 13(10): 2103. doi: 10.3390/v13102103
[14]	HUANG L X, RONG Y, TANG X, et al. Engineered exosomes as an in situ DC-primed vaccine to boost antitumor immunity in breast cancer[J]. Mol Cancer, 2022, 21(1): 45. doi: 10.1186/s12943-022-01515-x pmid: 35148751
[15]	WHELAN K A, MUIR A B, NAKAGAWA H. Esophageal 3D culture systems as modeling tools in esophageal epithelial pathobiology and personalized medicine[J]. Cell Mol Gastroenterol Hepatol, 2018, 5(4): 461-478. doi: 10.1016/j.jcmgh.2018.01.011 pmid: 29713660
[16]	PATNAUDE L, MAYO M, MARIO R, et al. Mechanisms and regulation of IL-22-mediated intestinal epithelial homeostasis and repair[J]. Life Sci, 2021, 271: 119195.
[17]	SCHREURS R R C E, BAUMDICK M E, SAGEBIEL A F, et al. Human fetal TNF-α-cytokine-producing CD4⁺ effector memory T cells promote intestinal development and mediate inflammation early in life[J]. Immunity, 2019, 50(2): 462-476.e8. doi: 10.1016/j.immuni.2018.12.010
[18]	GRETEN F R, GRIVENNIKOV S I. Inflammation and cancer: triggers, mechanisms, and consequences[J]. Immunity, 2019, 51(1): 27-41. doi: S1074-7613(19)30295-X pmid: 31315034
[19]	JOWETT G M, NORMAN M D A, YU T T L, et al. ILC1 drive intestinal epithelial and matrix remodelling[J]. Nat Mater, 2021, 20(2): 250-259. doi: 10.1038/s41563-020-0783-8
[20]	YE W R, LUO C, LI C L, et al. Organoids to study immune functions, immunological diseases and immunotherapy[J]. Cancer Lett, 2020, 477: 31-40. doi: S0304-3835(20)30096-3 pmid: 32112908
[21]	XIANG Z, ZHOU Z J, SONG S Z, et al. Dexamethasone suppresses immune evasion by inducing GR/STAT3 mediated downregulation of PD-L1 and IDO1 pathways[J]. Oncogene, 2021, 40(31): 5002-5012. doi: 10.1038/s41388-021-01897-0 pmid: 34175886
[22]	CATTANEO C M, DIJKSTRA K K, FANCHI L F, et al. Tumor organoid-T-cell coculture systems[J]. Nat Protoc, 2020, 15(1): 15-39. doi: 10.1038/s41596-019-0232-9 pmid: 31853056
[23]	BAR-EPHRAIM Y E, KRETZSCHMAR K, CLEVERS H. Organoids in immunological research[J]. Nat Rev Immunol, 2020, 20(5): 279-293. doi: 10.1038/s41577-019-0248-y
[24]	CHERNE M D, SIDAR B, SEBRELL T A, et al. A synthetic hydrogel, VitroGel^® ORGANOID-3, improves immune cell-epithelial interactions in a tissue chip co-culture model of human gastric organoids and dendritic cells[J]. Front Pharmacol, 2021, 12: 707891.
[25]	MORIKAWA R, NEMOTO Y, YONEMOTO Y, et al. Intraepithelial lymphocytes suppress intestinal tumor growth by cell-to-cell contact via CD103/E-cadherin signal[J]. Cell Mol Gastroenterol Hepatol, 2021, 11(5): 1483-1503. doi: 10.1016/j.jcmgh.2021.01.014 pmid: 33515805
[26]	DAVIDSON S, COLES M, THOMAS T, et al. Fibroblasts as immune regulators in infection, inflammation and cancer[J]. Nat Rev Immunol, 2021, 21(11): 704-717. doi: 10.1038/s41577-021-00540-z pmid: 33911232
[27]	SAHAI E, ASTSATUROV I, CUKIERMAN E, et al. A framework for advancing our understanding of cancer-associated fibroblasts[J]. Nat Rev Cancer, 2020, 20(3): 174-186. doi: 10.1038/s41568-019-0238-1 pmid: 31980749
[28]	SAINI H, NIKKHAH M. Fabrication method of a high-density co-culture tumor-stroma platform to study cancer progression[J]. Methods Mol Biol, 2021, 2258: 241-255. doi: 10.1007/978-1-0716-1174-6_16 pmid: 33340365
[29]	JANG I, BENINGO K A. Integrins, CAFs and mechanical forces in the progression of cancer[J]. Cancers, 2019, 11(5): 721. doi: 10.3390/cancers11050721
[30]	NARUSE M, OCHIAI M, SEKINE S, et al. Re-expression of REG family and DUOXs genes in CRC organoids by co-culturing with CAFs[J]. Sci Rep, 2021, 11(1): 2077. doi: 10.1038/s41598-021-81475-2 pmid: 33483567
[31]	LUO X B, FONG E L S, ZHU C J, et al. Hydrogel-based colorectal cancer organoid co-culture models[J]. Acta Biomater, 2021, 132: 461-472. doi: 10.1016/j.actbio.2020.12.037 pmid: 33388439
[32]	LIU J Y, LI P F, WANG L, et al. Cancer-associated fibroblasts provide a stromal niche for liver cancer organoids that confers trophic effects and therapy resistance[J]. Cell Mol Gastroenterol Hepatol, 2021, 11(2): 407-431. doi: 10.1016/j.jcmgh.2020.09.003 pmid: 32932015
[33]	DAWSON J C, SERRELS A, STUPACK D G, et al. Targeting FAK in anticancer combination therapies[J]. Nat Rev Cancer, 2021, 21(5): 313-324. doi: 10.1038/s41568-021-00340-6 pmid: 33731845
[34]	CHEN X, LI R, ZHAO H, et al. Phenotype transition of fibroblasts incorporated into patient-derived oral carcinoma organoids[J]. Oral Dis, 2021: 2021Nov5.
[35]	MIURA A, YAMADA D, NAKAMURA M, et al. Oncogenic potential of human pluripotent stem cell-derived lung organoids with HER2 overexpression[J]. Int J Cancer, 2021, 149(8): 1593-1604. doi: 10.1002/ijc.33713 pmid: 34152598
[36]	CHEN H, DU L, LI J, et al. Modeling cancer metastasis using acoustically bio-printed patient-derived 3D tumor microtissues[J]. J Mater Chem B, 2022, 10(11): 1843-1852. doi: 10.1039/D1TB02789A
[37]	SHINKAWA T, OHUCHIDA K, MOCHIDA Y, et al. Subtypes in pancreatic ductal adenocarcinoma based on niche factor dependency show distinct drug treatment responses[J]. J Exp Clin Cancer Res, 2022, 41(1): 89. doi: 10.1186/s13046-022-02301-9
[38]	CHENG Q S, JABBARI K, WINKELMAIER G, et al. Overexpression of CD36 in mammary fibroblasts suppresses colony growth in breast cancer cell lines[J]. Biochem Biophys Res Commun, 2020, 526(1): 41-47. doi: 10.1016/j.bbrc.2020.03.061
[39]	FIORINI E, VEGHINI L, CORBO V. Modeling cell communication in cancer with organoids: making the complex simple[J]. Front Cell Dev Biol, 2020, 8: 166. doi: 10.3389/fcell.2020.00166 pmid: 32258040
[40]	FELDMANN K, MAURER C, PESCHKE K, et al. Mesenchymal plasticity regulated by Prrx1 drives aggressive pancreatic cancer biology[J]. Gastroenterology, 2021, 160(1): 346-361.e24. doi: 10.1053/j.gastro.2020.09.010 pmid: 33007300
[41]	CHEN X M, SONG E W. Turning foes to friends: targeting cancer-associated fibroblasts[J]. Nat Rev Drug Discov, 2019, 18(2): 99-115. doi: 10.1038/s41573-018-0004-1 pmid: 30470818
[42]	DI DONATO M, ZAMAGNI A, GALASSO G, et al. The androgen receptor/filamin A complex as a target in prostate cancer microenvironment[J]. Cell Death Dis, 2021, 12(1): 127. doi: 10.1038/s41419-021-03402-7 pmid: 33500395
[43]	NAKAMURA H, SUGANO M, MIYASHITA T, et al. Organoid culture containing cancer cells and stromal cells reveals that podoplanin-positive cancer-associated fibroblasts enhance proliferation of lung cancer cells[J]. Lung Cancer, 2019, 134: 100-107. doi: S0169-5002(19)30394-0 pmid: 31319967
[44]	JORGENSEN M, RAMESH P, TORO M, et al. Alginate hydrogel microtubes for salivary gland cell organization and cavitation[J]. Bioengineering (Basel), 2022, 9(1): 38.
[45]	YANG H, FENG R, FU Q, et al. Human induced pluripotent stem cell-derived mesenchymal stem cells promote healing via TNF-α-stimulated gene-6 in inflammatory bowel disease models[J]. Cell Death Dis, 2019, 10(10): 718. doi: 10.1038/s41419-019-1957-7 pmid: 31558705
[46]	MOUSSA L, LAPIÈRE A, SQUIBAN C, et al. BMP antagonists secreted by mesenchymal stromal cells improve colonic organoid formation: application for the treatment of radiation-induced injury[J]. Cell Transplant, 2020, 29: 963689720929683.
[47]	CORDERO-ESPINOZA L, DOWBAJ A M, KOHLER T N, et al. Dynamic cell contacts between periportal mesenchyme and ductal epithelium act as a rheostat for liver cell proliferation[J]. Cell Stem Cell, 2021, 28(11): 1907-1921.e8. doi: 10.1016/j.stem.2021.07.002
[48]	TANAKA C, FURIHATA K, NAGANUMA S, et al. Establishment of a mouse model of pancreatic cancer using human pancreatic cancer cell line S2-013-derived organoid[J]. Hum Cell, 2022, 35(2): 735-744. doi: 10.1007/s13577-022-00684-7 pmid: 35150409
[49]	ADELSON R P, PALIKUQI B, WEISS Z, et al. Morphological characterization of Etv2 vascular explants using fractal analysis and atomic force microscopy[J]. Microvasc Res, 2021, 138: 104205.
[50]	PALIKUQI B, NGUYEN D H T, LI G, et al. Adaptable haemodynamic endothelial cells for organogenesis and tumorigenesis[J]. Nature, 2020, 585(7825): 426-432. doi: 10.1038/s41586-020-2712-z
[51]	SALMON I, GREBENYUK S, ABDEL FATTAH A R, et al. Engineering neurovascular organoids with 3D printed microfluidic chips[J]. Lab Chip, 2022, 22(8): 1615-1629. doi: 10.1039/D1LC00535A
[52]	AHN Y, AN J H, YANG H J, et al. Human blood vessel organoids penetrate human cerebral organoids and form a vessel-like system[J]. Cells, 2021, 10(8): 2036. doi: 10.3390/cells10082036
[53]	PRADHAN S, WEISS A A. Probiotic properties of escherichia coli nissle in human intestinal organoids[J]. mBio, 2020, 11(4): e01470-e01420.
[54]	PUSCHHOF J, PLEGUEZUELOS-MANZANO C, CLEVERS H. Organoids and organs-on-chips: Insights into human gut-microbe interactions[J]. Cell Host Microbe, 2021, 29(6): 867-878. doi: 10.1016/j.chom.2021.04.002 pmid: 34111395
[55]	NAKAMOTO N, SASAKI N, AOKI R, et al. Gut pathobionts underlie intestinal barrier dysfunction and liver T helper 17 cell immune response in primary sclerosing cholangitis[J]. Nat Microbiol, 2019, 4(3): 492-503. doi: 10.1038/s41564-018-0333-1 pmid: 30643240
[56]	NATARAJAN V, SIMONEAU C R, ERICKSON A L, et al. Modelling T-cell immunity against hepatitis C virus with liver organoids in a microfluidic coculture system[J]. Open Biol, 2022, 12(3): 210320.
[57]	LEE D, KIM Y, CHUNG C. Scientific validation and clinical application of lung cancer organoids[J]. Cells, 2021, 10(11): 3012. doi: 10.3390/cells10113012
[58]	HAN Y L, DUAN X H, YANG L L, et al. Identification of SARS-CoV-2 inhibitors using lung and colonic organoids[J]. Nature, 2021, 589(7841): 270-275. doi: 10.1038/s41586-020-2901-9
[59]	HUANG J, HUME A J, ABO K M, et al. SARS-CoV-2 infection of pluripotent stem cell-derived human lung alveolar type 2 cells elicits a rapid epithelial-intrinsic inflammatory response[J]. Cell Stem Cell, 2020, 27(6): 962-973.e7. doi: 10.1016/j.stem.2020.09.013 pmid: 32979316
[60]	SHEK D, CHEN D S, READ S A, et al. Examining the gut-liver axis in liver cancer using organoid models[J]. Cancer Lett, 2021, 510: 48-58. doi: 10.1016/j.canlet.2021.04.008 pmid: 33891996
[61]	HOLOKAI L, CHAKRABARTI J, BRODA T, et al. Increased programmed death-ligand 1 is an early epithelial cell response to helicobacter pylori infection[J]. PLoS Pathog, 2019, 15(1): e1007468.
[62]	SAYED I M, SAHAN A Z, VENKOVA T, et al. Helicobacter pylori infection downregulates the DNA glycosylase NEIL2, resulting in increased genome damage and inflammation in gastric epithelial cells[J]. J Biol Chem, 2020, 295(32): 11082-11098. doi: 10.1074/jbc.RA119.009981 pmid: 32518160
[63]	XU R, ZHOU X T, WANG S K, et al. Tumor organoid models in precision medicine and investigating cancer-stromal interactions[J]. Pharmacol Ther, 2021, 218: 107668.
